Dauer Manufacturing - 489156-3000K - Carmel LED Integrated Path Light, 3000K

Spec Sheet

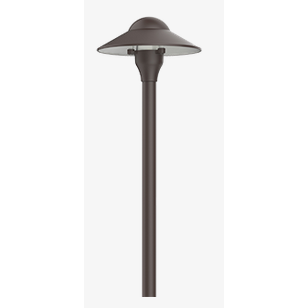

The Carmel path light features a 6.26-inch-diameter cast aluminum hat. Its underside is a powder-coated reflective white surface. 3W Integrated LED with a 2700K or 3000K color temperature. Ten-year warranty.

Specifications:

• Housing:  Cast aluminum

• Finish:  Architectural bronze
• Lens:  Polycarbonate
• Mounting:  1/2” NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
• Wiring:  Pre-wired with 5' pigtail of 18/2 cable.
• Warranty:  Ten years
• Integrated LED Lamp:
• Wattage:  3W
• Voltage:  12V
• Lumens:  300
• Volt Amps:  3.10VA
• Kelvin Temperature:  3000K

Dimensions:

• Overall Height:  21.46"
• Width:  6.26"

Housing: Cast aluminum
Finish: Architectural bronze
Lens: Polycarbonate
Mounting: 1/2” NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
Wiring: Pre-wired with 5' pigtail of 18/2 cable.
Warranty: Ten years
Integrated LED Lamp:
Wattage: 3W
Voltage: 12V
Lumens: 300
Volt Amps: 3.10VA
Kelvin Temperature: 3000K

Overall Height: 21.46"
Width: 6.26"
