Dauer Manufacturing - 490062 - Chelsea Well Light

Spec Sheet

The Chelsea weathered brass well light has a tempered glass lens, gasketed shroud, and durable composite body. 5-foot 18/2 wire lead. 1 lb. H5 Hex, need 3mm Hex tool for installation.

Specifications:

• Housing:  Cast brass faceplate. (Opens with 3 mm hex key.) Composite body.

• Finish:  Weathered brass
• Lens:  Flat tempered glass.
• Socket/Lamp Holder:  One ceramic GU5.3 bi-pin socket with stainless steel retaining springs, accepts MR16 lamps with G4 or GY6.35 bases.
• Lamp Type: 12V MR16. LED recommended. Halogen 30W maximum or 7W LED maximum.
• Mounting:  Installs in-grade.

• Wiring:  Pre-wired with 5' pigtail of 18/2 cable.
• Warranty:  Lifetime

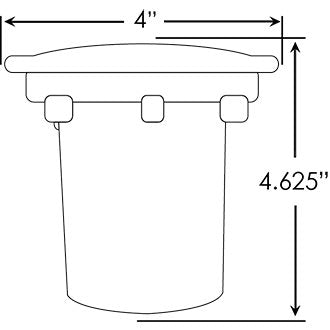

Dimensions:

• Overall Height:  4.75"
• Width:  3.9375"

• Body Width: 2.5"
• Body (top):  3.375"

Housing: Cast brass faceplate. (Opens with 3 mm hex key.) Composite body.
Finish: Weathered brass
Lens: Flat tempered glass.
Socket/Lamp Holder: One ceramic GU5.3 bi-pin socket with stainless steel retaining springs, accepts MR16 lamps with G4 or GY6.35 bases.
Lamp Type: 12V MR16. LED recommended. Halogen 30W maximum or 7W LED maximum.
Mounting: Installs in-grade.
Wiring: Pre-wired with 5' pigtail of 18/2 cable.
Warranty: Lifetime

Overall Height: 4.75"
Width: 3.9375"
Body Width: 2.5"
Body (top): 3.375"
