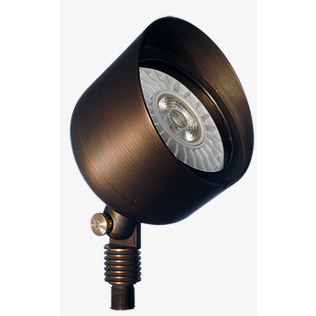

Dauer Manufacturing - 490015 Epic Uplight Fixture

Spec Sheet

The Epic cast brass 12-volt PAR36 uplight is enclosed with a clear tempered lens. The shroud is a “lock-and-load” configuration with an O-ring. Heavy-duty composite stake included, and other mounting options are available. 5-foot 18/2 wire lead is factory installed. 3.4 lbs.

Specifications:

• Housing:  Solid brass. Lock-and-load shroud with O-ring.
• Finish:  Weathered brass. Custom powder coated colors available.
• Lens:  Clear tempered glass flat lens
• Socket/Lamp Holder:  Stainless steel fork terminals
• Lamp Type:  12V PAR36. LED recommended. 12W LED or 35W halogen maximum.
• Mounting:  Stem threaded with ½" NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
• Wiring:  Pre-wired with 5' pigtail of 18/2 cable.
• Warranty:  Lifetime

Dimensions:

• Height:  6.375"
• Width:  5"

• Length:  5.25"


Housing: Solid brass. Lock-and-load shroud with O-ring.
Finish: Weathered brass. Custom powder coated colors available.
Lens: Clear tempered glass flat lens
Socket/Lamp Holder: Stainless steel fork terminals
Lamp Type: 12V PAR36. LED recommended. 12W LED or 35W halogen maximum.
Mounting: Stem threaded with ½" NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
Wiring: Pre-wired with 5' pigtail of 18/2 cable.
Warranty: Lifetime

Height: 6.375"
Width: 5"
Length: 5.25"
