Product Overview

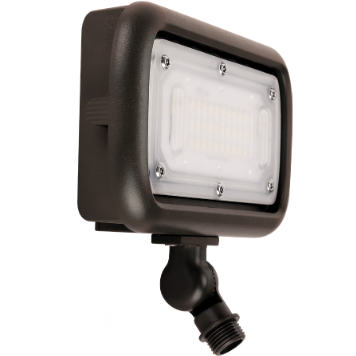

The Dauer 490691 is a 12V aluminum mini flood light with an integrated 40W LED for higher-output landscape and architectural accent lighting. It produces 4840 lumens at 3000K and uses a sealed cast aluminum housing with an architectural bronze finish.
This fixture is intended for applications that need a broad, strong wash of warm-white light, such as building façades, larger signs, walls, larger planting areas, and outdoor focal points. Because the output is significantly higher than many smaller landscape fixtures, placement and aiming should be planned carefully to reduce glare toward windows, walkways, roads, seating areas, and neighboring property. Include the 40W fixture load and listed volt-amp demand when sizing the transformer, and review wire gauge, circuit length, and voltage drop for the complete low-voltage run. Confirm the mounting location, threaded 1/2 in. NPT connection, drainage, cable route, outdoor-rated connections, and access for future service before installation.
Key Features:
- Integrated 40W LED mini flood light
- 3000K warm-white color temperature
- 4840 lumen output
- Sealed cast aluminum housing
- Architectural bronze finish
- Threaded 1/2 in. NPT mounting connection
- Pre-wired with a 5 ft 18/2 SPT1 lead
- 10-year warranty
Common Uses:
- Architectural façade lighting
- Outdoor sign illumination
- Large landscape bed and wall-wash applications
- Higher-output exterior accent lighting
Technical Specifications:
-
SKU: 490691
-
Fixture Type: Integrated LED mini flood light
-
Wattage: 40W
-
Lumens: 4840
-
Color Temperature: 3000K
-
Voltage: 12V AC/DC
-
CRI: 80
-
Housing: Sealed cast aluminum
-
Finish: Architectural bronze
-
Mounting: Threaded 1/2 in. NPT
-
Wiring: 5 ft 18/2 SPT1 lead
-
Model: LED-MF-40W-3000K-12V
Compatibility and Installation Notes:
Use with a compatible 12V AC/DC low-voltage landscape-lighting system. Because this is a 40W fixture, verify transformer capacity, circuit load, wire size, and voltage drop before installation. A shroud is not included and must be purchased separately when the project requires additional glare control.
FAQ:
Does this fixture require a separate lamp?
No. It uses an integrated LED light source.
How bright is this mini flood light?
It is listed at 4840 lumens.
Is a shroud included?
No. The product specifications note that the shroud must be purchased separately.
