Product Overview

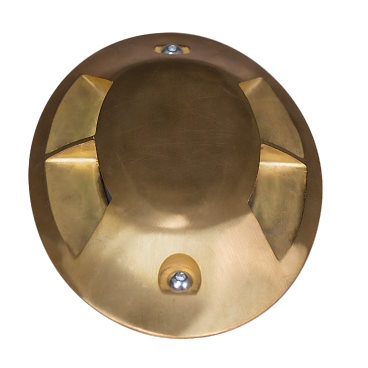

The Dauer 489935-RAW-27K Mariner is a double-aperture integrated LED dock light with a cast brass cover and stainless steel base plate. The raw brass fixture produces 2700K light through two openings for low-profile illumination on docks and other outdoor surfaces.
The two apertures direct light in opposite directions along the mounting surface, making fixture orientation important for docks, decks, steps, and walkway edges. Plan the light paths before drilling so the openings face the areas that need guidance without sending glare toward seating, windows, or approaching users. The integrated LED does not require a separate lamp, but its 2.2W load must still be included in transformer sizing and voltage-drop calculations. Confirm a suitable flat mounting surface, stainless fasteners, cable routing, outdoor connections, and access for future service before installation.
Key Features:
- Double-aperture light pattern
- Cast brass cover with raw brass finish
- Stainless steel base plate
- Integrated 2.2W LED
- 2700K warm-white output
- Pre-wired with a 5 ft 18/2 cable
Common Uses:
- Dock and pier lighting
- Deck and walkway edge lighting
- Low-profile outdoor accent lighting
- Illuminating steps and surface transitions
Technical Specifications:
-
SKU: 489935-RAW-27K
-
Fixture Type: Double-aperture dock light
-
Light Source: Integrated LED
-
Wattage: 2.2W
-
Lumens: 220
-
Color Temperature: 2700K
-
Voltage: 12V
-
Housing: Cast brass cover with stainless steel base plate
-
Dimensions: 4.5 in. width x 6.625 in. length x 0.75 in. depth
-
Warranty: 10 years
Compatibility and Installation Notes:
Mount with suitable stainless steel screws and connect to a compatible 12V low-voltage lighting system. Plan fixture orientation so both apertures direct light along the intended surface.
FAQ:
Does this Mariner light require a separate lamp?
No. It has an integrated LED light source.
How many light openings does this model have?
This model has two apertures.
What finish does it have?
It has a raw brass finish.
