Product Overview

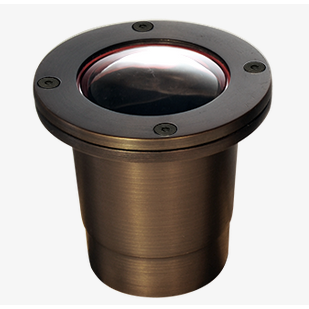

The Dauer 490066 Solara is a cast brass in-grade well light fixture for compatible 12V MR16 lamps. Its weathered brass finish, clear convex tempered glass lens, and low-profile round top suit landscape uplighting applications.
The lamp-ready fixture allows the final output, beam width, and color temperature to be selected for trees, walls, signs, and landscape features. Verify the MR16 base, dimensions, voltage, and wattage and add the chosen lamp load to transformer sizing and voltage-drop calculations. An in-grade installation should be planned for drainage, cable entry, outdoor connections, surrounding material, and future access before the body is set. Use the lamp beam and fixture position to limit glare, and retain access for the hex tool and lamp replacement.
Key Features:
- Cast brass in-grade base
- Weathered brass finish
- Clear convex tempered glass lens
- Fixed ceramic bi-pin socket
- Pre-wired with a 5 ft wire lead
- Lifetime warranty
Common Uses:
- Tree and shrub uplighting
- Landscape focal-point illumination
- Architectural wall accents
- Low-profile in-grade lighting
Technical Specifications:
-
SKU: 490066
-
Fixture Type: MR16 well light
-
Lamp Type: Compatible 12V MR16
-
Housing: Cast brass
-
Finish: Weathered brass
-
Lens: Clear convex tempered glass
-
Mounting: In-grade
-
Dimensions: 3.62 in. overall height x 3.75 in. top width
-
Lamp Included: No
-
Warranty: Lifetime
Compatibility and Installation Notes:
A compatible 12V MR16 lamp is sold separately. Plan the installation for drainage and future service access; a 3 mm hex tool is required to access the fixture.
FAQ:
Is an MR16 lamp included?
No. A compatible 12V MR16 lamp is sold separately.
Is this fixture installed in the ground?
Yes. The Solara is an in-grade well light.
What lens does it use?
It has a clear convex tempered glass lens.
