Spec Sheet

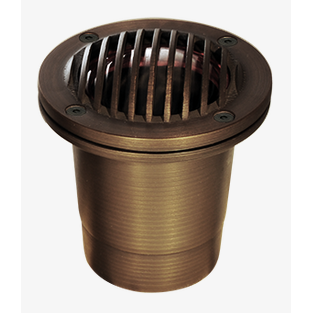

The Tides rock guard well light is crafted from cast brass and features a clear glass lens protected by a louvered grate. 5-foot 18/2 wire pigtail is factory installed. H5 Hex, required 3mm Hex tool for installation.

Specifications:

  • Housing:  Cast brass in-grade base with rock guard. H5 Hex, Requires a 3mm Hex tool for installation.
  • Finish:  Weathered brass
  • Socket/Lamp Holder:  One fixed ceramic bi-pin socket with stainless steel retaining springs
  • Lens:  Clear convex tempered glass
  • Lamp Type:  12V MR16. LED recommended. 30W halogen or 7W LED maximum
  • Mounting:  Installs in-grade
  • Wiring:  Pre-wired with 5' pigtail of 18/2 cable.
  • Warranty:  Lifetime
  • Lamp Not Included

Dimensions:

  • Overall Height:  3.62"
  • Body Height:  3.187"
  • Overall Width:  3.75"
  • Body Diameter:  3"
  • Bottom Width:  2.375"

Housing: Cast brass in-grade base with rock guard. H5 Hex, Requires a 3mm Hex tool for installation.
Finish: Weathered brass
Socket/Lamp Holder: One fixed ceramic bi-pin socket with stainless steel retaining springs
Lens: Clear convex tempered glass
Lamp Type: 12V MR16. LED recommended. 30W halogen or 7W LED maximum
Mounting: Installs in-grade
Wiring: Pre-wired with 5' pigtail of 18/2 cable.
Warranty: Lifetime
Lamp Not Included

Overall Height: 3.62"
Body Height: 3.187"
Overall Width: 3.75"
Body Diameter: 3"
Bottom Width: 2.375"
