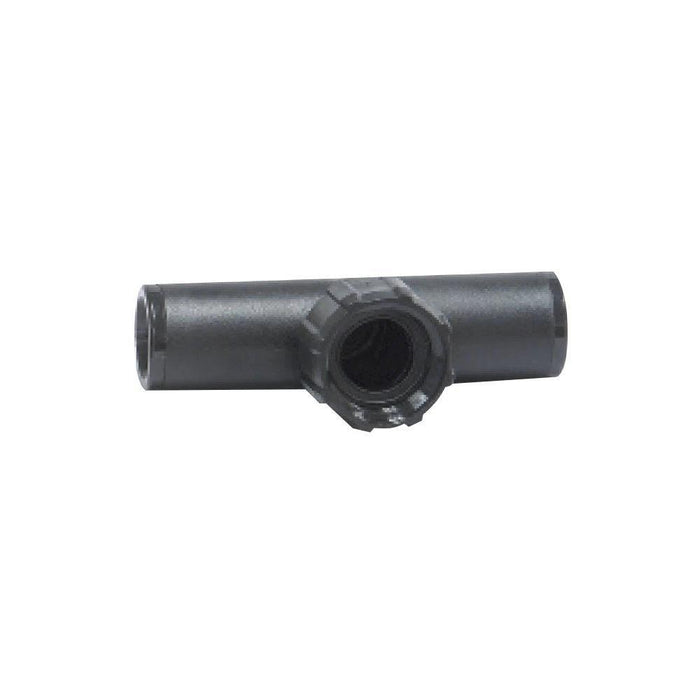

DIG 24-066 0.710 in. OD x 3/4 in. FNPT Swivel Tee with Washer

Product Overview

The DIG 24-066 swivel tee connects a 3/4 in. male pipe-thread supply point to two compatible 0.710 in. OD drip-tubing branches. The female pipe-thread swivel and included washer support alignment at the inlet.

Key Features:

• 3/4 in. female pipe-thread swivel inlet
• Two 0.710 in. OD compression outlets
• Blue color-coded inserts
• Washer included
• Installs without glue or clamps on tubing outlets

Common Uses:

• Splitting a threaded water source into two drip laterals
• Feeding two planting zones
• Building or servicing a branched drip-system inlet

Technical Specifications:

• Inlet: 3/4 in. FNPT swivel
• Compatible Outlet Tubing OD: 0.710-0.720 in.
• Color Code: Blue
• Operating Pressure: Up to 60 PSI
• Included: Washer

Compatibility and Installation Notes:

Confirm the source has a compatible 3/4 in. male pipe thread and measure the tubing OD. Fully insert both tubing branches and check the swivel connection for leaks.

FAQ:

How many tubing branches does it create?
It provides two compression outlets.

Is the inlet hose thread?
No. It is female pipe thread.
