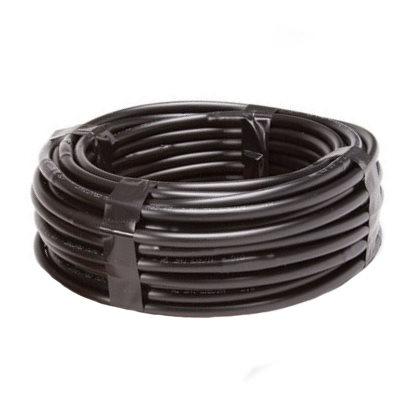

DIG ML-206 Microline Dripline, 250 ft, 6 in. Spacing

Product Overview

The DIG ML-206 is a 250 ft coil of 1/4 in. Microline dripline with 0.52 GPH emitters spaced every 6 in. The close spacing supports containers and densely planted areas.

Key Features:

• 0.52 GPH integrated emitters
• 6 in. emitter spacing
• 250 ft coil
• Two outlets per emitter
• Flexible small-diameter dripline
• Compatible with correctly sized 1/4 in. barbed fittings

Common Uses:

• Closely planted rows
• Planter boxes and containers
• Narrow or densely planted beds

Technical Specifications:

• Nominal Emitter Flow: 0.52 GPH at 15 PSI
• Operating Pressure: 10-25 PSI
• Filter Requirement: Minimum 150 mesh
• Material: Linear low-density polyethylene
• Minimum Bend Radius: 1 ft

Dimensions:

• Length: 250 ft
• Spacing: 6 in.
• Tubing: 0.170 in. ID x 0.250 in. OD

Installation Notes:

Use pressure regulation and at least 150-mesh filtration. Plan the higher emitter count created by 6 in. spacing when sizing the zone.

FAQ:

How far apart are the emitters?
6 in.

How long is the coil?
250 ft.
