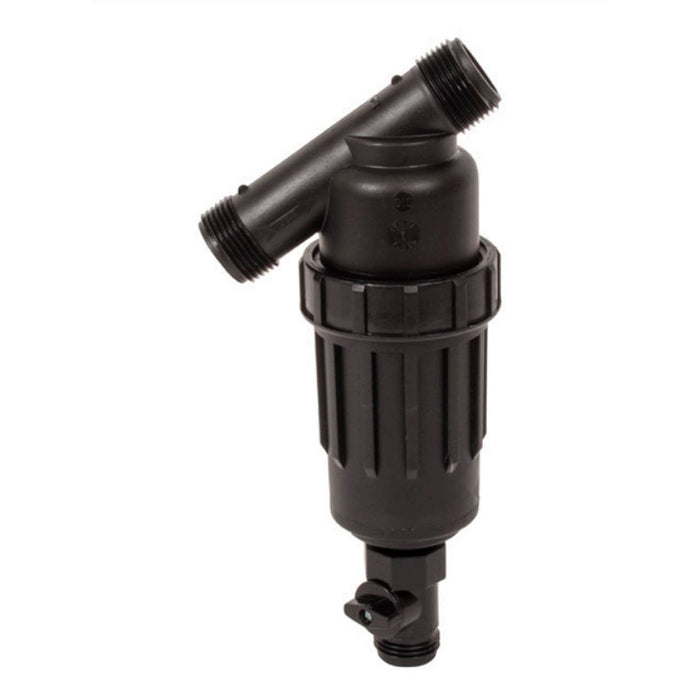

DIG P19-200 1 in. MNPT Plastic Screen Filter, 200-Mesh Stainless Steel

Product Overview

The DIG P19-200 is a 1 in. male pipe-thread irrigation filter with a 200-mesh stainless steel screen and a 3/4 in. hose-thread flush connection.

Key Features:

• 200-mesh stainless steel screen
• 1 in. MNPT inlet and outlet
• 3/4 in. FHT flush connection
• Removable screen for cleaning
• Polypropylene housing with EPDM O-ring

Common Uses:

• Fine filtration for drip irrigation
• Protecting small emitters and micro components
• 1 in. irrigation supply assemblies

Technical Specifications:

• Filtration: 200 mesh
• Screen Material: Stainless steel
• Maximum Flow: 18 GPM
• Maximum Operating Pressure: 120 PSI
• Maximum Temperature: 130°F
• Filtration Area: 14.9 sq. in.

Dimensions and Connections:

• Inlet and Outlet: 1 in. MNPT
• Flush Connection: 3/4 in. FHT

Maintenance Notes:

Depressurize before opening the housing. Flush or remove the screen for cleaning and inspect the O-ring before reassembly.

FAQ:

What is the screen material?
Stainless steel.

What is the filtration rating?
200 mesh.
