Product Overview

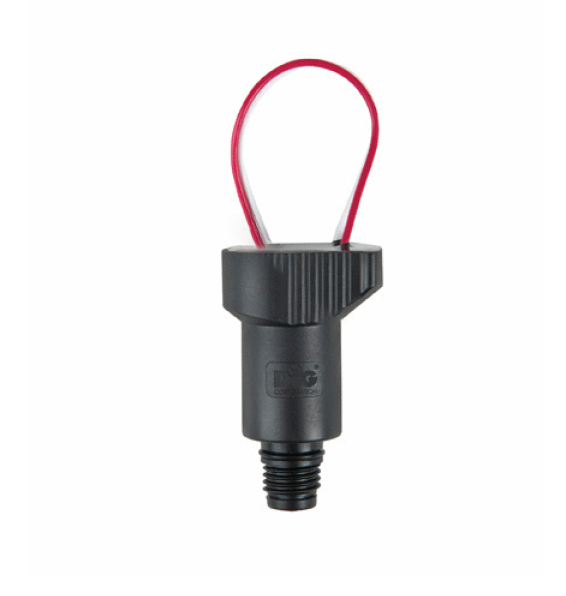

The DIG LEMA 1600HE is a watertight, high-efficiency DC magnetic solenoid actuator designed specifically for DIG LEIT 4000, LEIT X, and LEIT XRC controllers. It uses an 11/16-12 UN thread and can be adapted to a wide range of irrigation valves using the appropriate DIG valve adapter.
Key Features:
- Designed for LEIT 4000, LEIT X, and LEIT XRC controllers
- Watertight, potted solenoid construction
- Two-way magnetic latching operation
- Manual internal bleed override
- 11/16-12 UN actuator thread
- Compatible with DIG valve adapters for many common valve brands
Common Uses:
- Converting compatible irrigation valves for use with DIG LEIT controllers
- Low-power irrigation valve actuation
- LEIT 4000, X, and XRC system installations and service
Technical Specifications:
-
Model: LEMA 1600HE
-
Actuator Thread: 11/16-12 UN
-
Pressure Range: 10-150 PSI
-
Temperature Range: Up to 150°F
-
Control Orifice: 0.065 in.
-
Lead Wires: 18 in., 16 AWG red and white
-
Housing Material: Glass-reinforced nylon
-
Plunger & Spacer: 430F stainless steel
-
O-Ring: Buna-N
Compatibility & Installation Notes:
The LEMA 1600HE is intended for use with LEIT 4000, LEIT X, and LEIT XRC controllers only. Valve compatibility depends on the correct DIG adapter; verify the valve make, series, and adapter before installation. Follow DIG's wiring and installation instructions for polarity, maximum wire run, and manual operation.
Frequently Asked Questions
Can the LEMA 1600HE be used with any irrigation controller?
No. DIG specifies it for LEIT 4000, LEIT X, and LEIT XRC controllers.
Will it fit every valve directly?
No. Many valves require a DIG adapter matched to the valve brand and series.
What thread does the actuator use?
The LEMA 1600HE uses an 11/16-12 UN thread.
Why Buy DIG LEMA 1600HE from Big Frog Supply?
The LEMA 1600HE is the correct low-power actuator for compatible DIG LEIT systems and can be adapted to many common irrigation valves when matched with the proper DIG adapter.
