EEMAX SPEX4208 4.1kW 208V Electric Tankless Water Heater Flow Co

• Commercial handwashing and other fixed-flow applications
• One (1) lav faucet, sensor faucet or metering faucet
• Self-diagnostics with intelligent controls
• InfoCue™ visible LED indicator
• SafeStart™ technology
• Mounts in any orientation
• Compact size
• GPM Turn On: 0.4
• Physical Max Volume: 2.0 gpm
• Minimum Operating Pressure: 30 PSI
• Max Pressure Rating: 150 PSI
• Power: 4.1kW
• Volts: 208V
• Phase: Single
• Amperage: 20
• Recommended Wire Size: 14 AWG

• Sizing - Size based on performance and not electrical infrastructure. Three key factors, incoming water temperature, water volume, and desired outlet temperature.
• Electrical - All Eemax Tankless Water Heaters are designed to be hardwire to a dedicated circuit breaker and are not supplied with a cord and plug

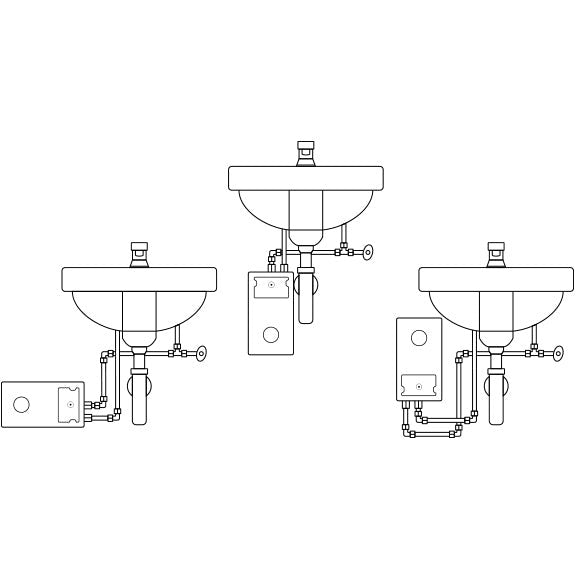

• Mounting - This family of Eemax products can be mounted in any orientation. Inlet and outlet cannot be reversed.
• Local Codes - Please check all applicable codes, national and local to ensure compliance both on the plumbing and electrical installation

• Height: 10.75 inches
• Width: 5.22 inches
• Depth: 3
• Weight: 4
• Color: White
• Cover Material: ABS-UL 94 V-0 Rated

Electrical Specifications
Power: 4.1kW
Volts: 208V
Phase: 1
Amperage: 20
Recommended Wire Size: 14
Performance Specifications
GPM Turn On: 0.4
Physical Max Volume: 0 gpm
Minimum Operating Temp: 0
Max Operating Temp: 0
Minimum Operating Pressure: 0 PSI
Max Pressure Rating: 150 PSI

Physical Specifications
Height: 10 inches
Width: 5 inches
Depth: 3 inches
Weight: -
Color: White
Cover Material: ABS-UL 94 V-0 Rated
