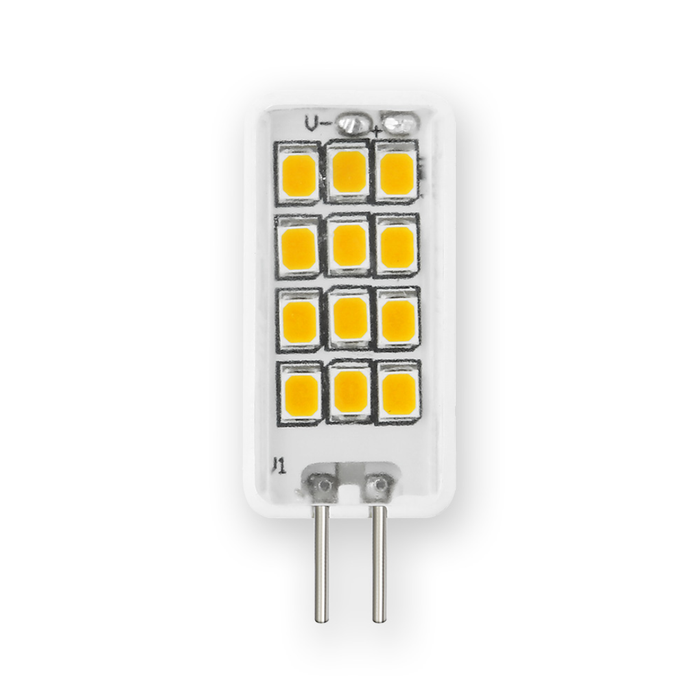

EmeryAllen 1.5W Linear G4 LED Replacement Lamp - 3000K, 360 degree - EA-LG4-1.5W-001-309F
Brand: EmeryAllen | SKU: EA-LG4-1.5W-001-309F
Product Overview
The EmeryAllen EA-LG4-1.5W-001-309F is a 1.5W Linear G4 LED lamp designed for 12V AC/DC fixtures. It produces 170 lumens at 3000K with a 360 degree beam spread and 92.1 CRI.
Use this lamp as a retrofit for compatible G4 fixtures when the existing socket, input voltage, physical clearance, and optical requirements match. EmeryAllen designs its miniature LED lamps for efficient replacement of traditional halogen or incandescent lamps while retaining compact fixture compatibility.
Key Features
- 1.5W LED lamp
- G4 base / form factor
- Input voltage: 12V AC/DC
- Light output: 170 lumens
- Color / CCT: 3000K
- Beam spread: 360 degree
- CRI: 92.1
- Dimmable: Yes
- VA rating: 2.31
- Limited lifetime manufacturer warranty
Common Uses
- Landscape step lights
- Path lights
- Compact outdoor fixtures
- Other compatible linear G4 applications
Technical Specifications
| Brand |
EmeryAllen |
| SKU |
EA-LG4-1.5W-001-309F |
| Product Type |
Linear G4 LED Replacement Lamp |
| Base / Form Factor |
G4 |
| Input Voltage |
12V AC/DC |
| Wattage |
1.5W |
| Brightness |
170 lumens |
| Color / CCT |
3000K |
| Beam Spread |
360 degree |
| CRI |
92.1 |
| Dimmable |
Yes |
| VA Rating |
2.31 |
Dimensions
| Diameter / Width |
0.625 in. |
| Length |
1.5 in. |
Compatibility & Notes
The linear G4 form factor is different from a standard capsule-style G4. Compare dimensions before ordering. This SKU is listed as dimmable; use only with compatible transformers and dimmers.
Replacement Note: Always compare the existing lamp's base, voltage, physical dimensions, beam spread, and fixture rating before ordering. Small differences in lamp shape or length can affect fit in compact fixtures.
Frequently Asked Questions
What base does the EA-LG4-1.5W-001-309F use?
This SKU uses a G4 base or form factor.
What light output does the EA-LG4-1.5W-001-309F provide?
It produces approximately 170 lumens at 3000K with a 360 degree beam spread.
Is the EA-LG4-1.5W-001-309F dimmable?
Yes. This SKU is listed as dimmable; use it only with compatible dimming equipment.
How do I know if this EmeryAllen lamp will fit my fixture?
Match the existing lamp's base, input voltage, physical dimensions, and beam requirements. For enclosed or specialty fixtures, also confirm the fixture manufacturer's lamp compatibility.
Why Buy the EA-LG4-1.5W-001-309F?
The EA-LG4-1.5W-001-309F gives you an exact EmeryAllen replacement option with clearly defined electrical and optical specifications. Choosing the correct SKU helps preserve fixture fit, beam performance, color, and light output while moving from traditional lamp technology to an efficient LED replacement.
