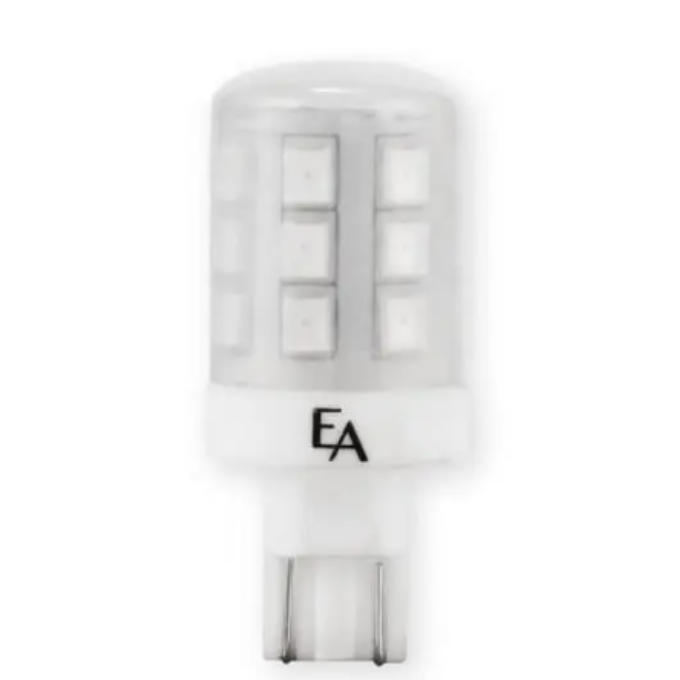

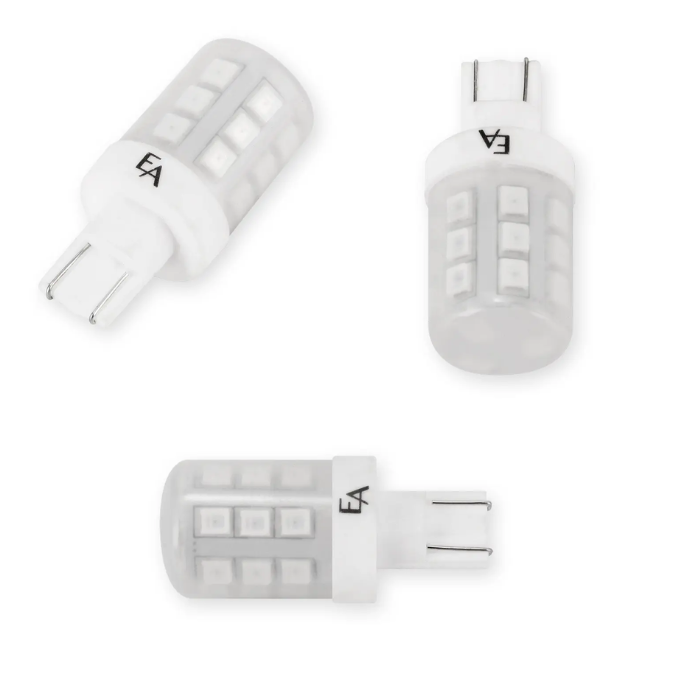

EmeryAllen 1W T5 Miniature Wedge Amber Turtle Bulb - 360 degree - EA-T5-1.0W-001-AMB
Brand: EmeryAllen | SKU: EA-T5-1.0W-001-AMB
Product Overview
The EmeryAllen EA-T5-1.0W-001-AMB is a 1W T5 Miniature Wedge LED lamp designed for 12V AC/DC fixtures. This amber Turtle Bulb produces 25 lumens with a 360 degree beam and is intended for on/off operation.
EmeryAllen identifies its amber Turtle Bulbs for artificial-lighting applications near ecologically sensitive areas. Where coastal or wildlife-lighting rules apply, install the lamp in an approved shielded or downward-directed fixture and follow all local requirements.
Key Features
- 1W LED lamp
- T5 Miniature Wedge base / form factor
- Input voltage: 12V AC/DC
- Light output: 25 lumens
- Amber output for Turtle Bulb applications
- Beam spread: 360 degree
- Dimmable: No
- VA rating: 1.4
- Non-dimmable on/off operation
- Limited lifetime manufacturer warranty
Common Uses
- Landscape path and step lights
- Low-voltage outdoor fixtures
- Accent lighting
- Other compatible T5 miniature-wedge fixtures
Technical Specifications
| Brand |
EmeryAllen |
| SKU |
EA-T5-1.0W-001-AMB |
| Product Type |
T5 Miniature Wedge Amber Turtle Bulb |
| Base / Form Factor |
T5 Miniature Wedge |
| Input Voltage |
12V AC/DC |
| Wattage |
1W |
| Brightness |
25 lumens |
| Color / CCT |
Amber |
| Beam Spread |
360 degree |
| Dimmable |
No |
| VA Rating |
1.4 |
Dimensions
| Diameter / Width |
0.75 in. |
| Length |
1.5625 in. |
Compatibility & Notes
Confirm miniature-wedge base compatibility and physical lamp dimensions. EmeryAllen states its 12V and 120V Turtle Bulb lines are non-dimmable and intended for on/off applications only.
Replacement Note: Always compare the existing lamp's base, voltage, physical dimensions, beam spread, and fixture rating before ordering. Small differences in lamp shape or length can affect fit in compact fixtures.
Frequently Asked Questions
What base does the EA-T5-1.0W-001-AMB use?
This SKU uses a T5 Miniature Wedge base or form factor.
What light output does the EA-T5-1.0W-001-AMB provide?
It produces approximately 25 lumens at Amber with a 360 degree beam spread.
Is the EA-T5-1.0W-001-AMB dimmable?
No. This SKU is intended for on/off operation.
How do I know if this EmeryAllen lamp will fit my fixture?
Match the existing lamp's base, input voltage, physical dimensions, and beam requirements. For enclosed or specialty fixtures, also confirm the fixture manufacturer's lamp compatibility.
Why Buy the EA-T5-1.0W-001-AMB?
The EA-T5-1.0W-001-AMB gives you an exact EmeryAllen replacement option with clearly defined electrical and optical specifications. Choosing the correct SKU helps preserve fixture fit, beam performance, color, and light output while moving from traditional lamp technology to an efficient LED replacement.
