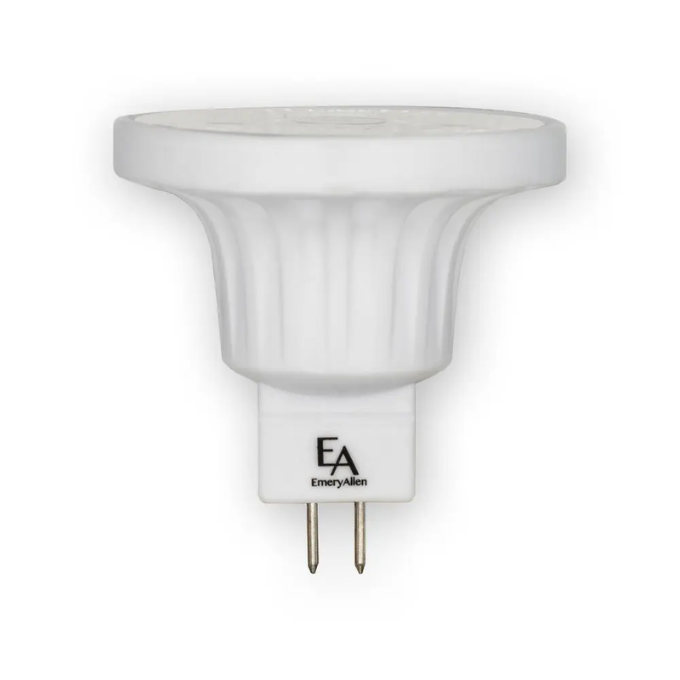

EmeryAllen 3W MR16 GU5.3 LED Replacement Lamp - 3000K, 120 degree - EA-MR16-3.0W-120D-3090-D
Brand: EmeryAllen | SKU: EA-MR16-3.0W-120D-3090-D
Product Overview
The EmeryAllen EA-MR16-3.0W-120D-3090-D is a 3W MR16 GU5.3 LED lamp designed for 12V AC fixtures. It produces 220 - 330 lumens at 3000K with a 120 degree beam spread and >90 CRI.
Use this lamp as a retrofit for compatible GU5.3 / MR16 fixtures when the existing socket, input voltage, physical clearance, and optical requirements match. EmeryAllen designs its miniature LED lamps for efficient replacement of traditional halogen or incandescent lamps while retaining compact fixture compatibility.
Key Features
- 3W LED lamp
- GU5.3 / MR16 base / form factor
- Input voltage: 12V AC
- Light output: 220 - 330 lumens
- Color / CCT: 3000K
- Beam spread: 120 degree
- CRI: >90
- Dimmable: Yes
- VA rating: 3.396
- Limited lifetime manufacturer warranty
Common Uses
- Landscape uplights and downlights
- Accent and directional lighting
- Track and pendant fixtures
- Other compatible MR16 fixtures
Technical Specifications
| Brand |
EmeryAllen |
| SKU |
EA-MR16-3.0W-120D-3090-D |
| Product Type |
MR16 GU5.3 LED Replacement Lamp |
| Base / Form Factor |
GU5.3 / MR16 |
| Input Voltage |
12V AC |
| Wattage |
3W |
| Brightness |
220 - 330 lumens |
| Color / CCT |
3000K |
| Beam Spread |
120 degree |
| CRI |
>90 |
| Dimmable |
Yes |
| VA Rating |
3.396 |
Dimensions
| Diameter / Width |
2 in. |
| Length |
2 in. |
Compatibility & Notes
MR16 lamps use a GU5.3 base. Match beam spread, voltage, transformer/dimmer compatibility, and fixture clearance. This SKU is listed as dimmable; use only with compatible transformers and dimmers.
Replacement Note: Always compare the existing lamp's base, voltage, physical dimensions, beam spread, and fixture rating before ordering. Small differences in lamp shape or length can affect fit in compact fixtures.
Frequently Asked Questions
What base does the EA-MR16-3.0W-120D-3090-D use?
This SKU uses a GU5.3 / MR16 base or form factor.
What light output does the EA-MR16-3.0W-120D-3090-D provide?
It produces approximately 220 - 330 lumens at 3000K with a 120 degree beam spread.
Is the EA-MR16-3.0W-120D-3090-D dimmable?
Yes. This SKU is listed as dimmable; use it only with compatible dimming equipment.
How do I know if this EmeryAllen lamp will fit my fixture?
Match the existing lamp's base, input voltage, physical dimensions, and beam requirements. For enclosed or specialty fixtures, also confirm the fixture manufacturer's lamp compatibility.
Why Buy the EA-MR16-3.0W-120D-3090-D?
The EA-MR16-3.0W-120D-3090-D gives you an exact EmeryAllen replacement option with clearly defined electrical and optical specifications. Choosing the correct SKU helps preserve fixture fit, beam performance, color, and light output while moving from traditional lamp technology to an efficient LED replacement.
