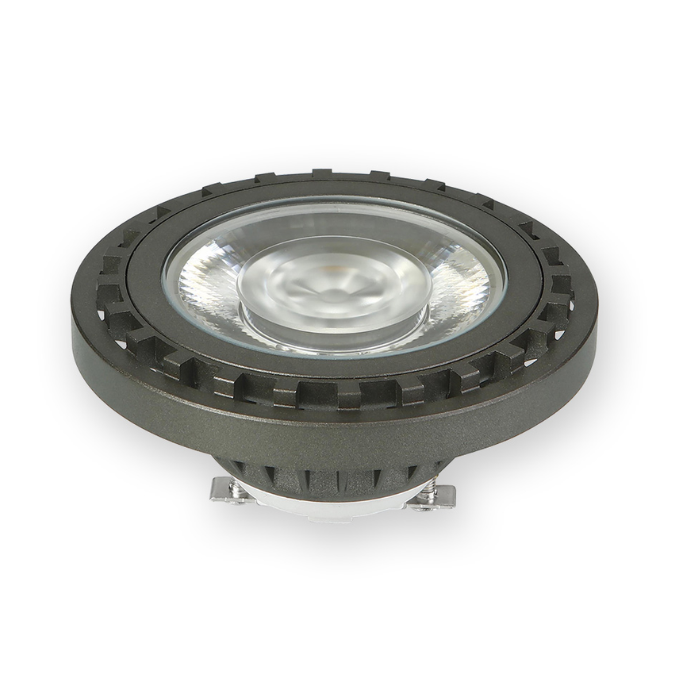

EmeryAllen 5.5W PAR36 LED Replacement Lamp - 2700K, 60 degree - EA-PAR36-5.5W-60D-2790-D
Brand: EmeryAllen | SKU: EA-PAR36-5.5W-60D-2790-D
Product Overview
The EmeryAllen EA-PAR36-5.5W-60D-2790-D is a 5.5W PAR36 LED lamp designed for 12V AC/DC fixtures. It produces 425 - 525 lumens at 2700K with a 60 degree beam spread and 90 CRI.
Use this lamp as a retrofit for compatible Male Spade-Lug PAR36 fixtures when the existing socket, input voltage, physical clearance, and optical requirements match. EmeryAllen designs its miniature LED lamps for efficient replacement of traditional halogen or incandescent lamps while retaining compact fixture compatibility.
Key Features
- 5.5W LED lamp
- Male Spade-Lug PAR36 base / form factor
- Input voltage: 12V AC/DC
- Light output: 425 - 525 lumens
- Color / CCT: 2700K
- Beam spread: 60 degree
- CRI: 90
- Dimmable: Yes
- VA rating: 6.5
- Limited lifetime manufacturer warranty
Common Uses
- In-ground landscape well lights
- Tree and fa�ade lighting
- Wide-area floodlighting
- Other compatible 12V PAR36 fixtures
Technical Specifications
| Brand |
EmeryAllen |
| SKU |
EA-PAR36-5.5W-60D-2790-D |
| Product Type |
PAR36 LED Replacement Lamp |
| Base / Form Factor |
Male Spade-Lug PAR36 |
| Input Voltage |
12V AC/DC |
| Wattage |
5.5W |
| Brightness |
425 - 525 lumens |
| Color / CCT |
2700K |
| Beam Spread |
60 degree |
| CRI |
90 |
| Dimmable |
Yes |
| VA Rating |
6.5 |

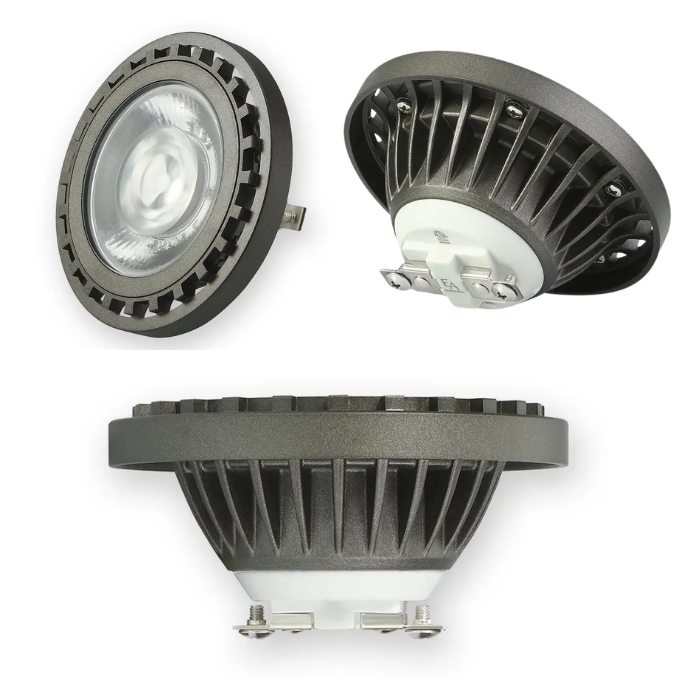

Dimensions
| Diameter / Width |
4.375 in. |
| Length |
2.1875 in. |
Compatibility & Notes
PAR36 lamps use male spade-lug terminals. Match voltage, fixture depth, and beam spread. This SKU is listed as dimmable; use only with compatible transformers and dimmers.
Replacement Note: Always compare the existing lamp's base, voltage, physical dimensions, beam spread, and fixture rating before ordering. Small differences in lamp shape or length can affect fit in compact fixtures.
Frequently Asked Questions
What base does the EA-PAR36-5.5W-60D-2790-D use?
This SKU uses a Male Spade-Lug PAR36 base or form factor.
What light output does the EA-PAR36-5.5W-60D-2790-D provide?
It produces approximately 425 - 525 lumens at 2700K with a 60 degree beam spread.
Is the EA-PAR36-5.5W-60D-2790-D dimmable?
Yes. This SKU is listed as dimmable; use it only with compatible dimming equipment.
How do I know if this EmeryAllen lamp will fit my fixture?
Match the existing lamp's base, input voltage, physical dimensions, and beam requirements. For enclosed or specialty fixtures, also confirm the fixture manufacturer's lamp compatibility.
Why Buy the EA-PAR36-5.5W-60D-2790-D?
The EA-PAR36-5.5W-60D-2790-D gives you an exact EmeryAllen replacement option with clearly defined electrical and optical specifications. Choosing the correct SKU helps preserve fixture fit, beam performance, color, and light output while moving from traditional lamp technology to an efficient LED replacement.
