Product Overview

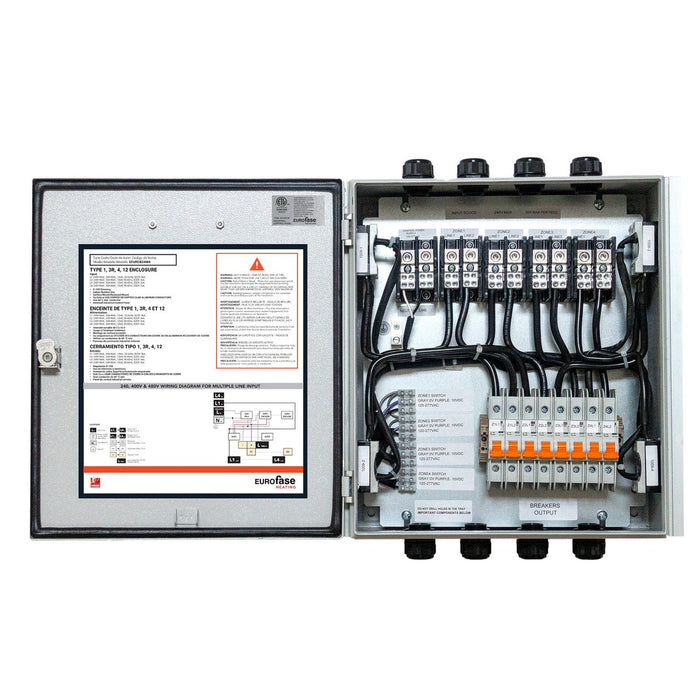

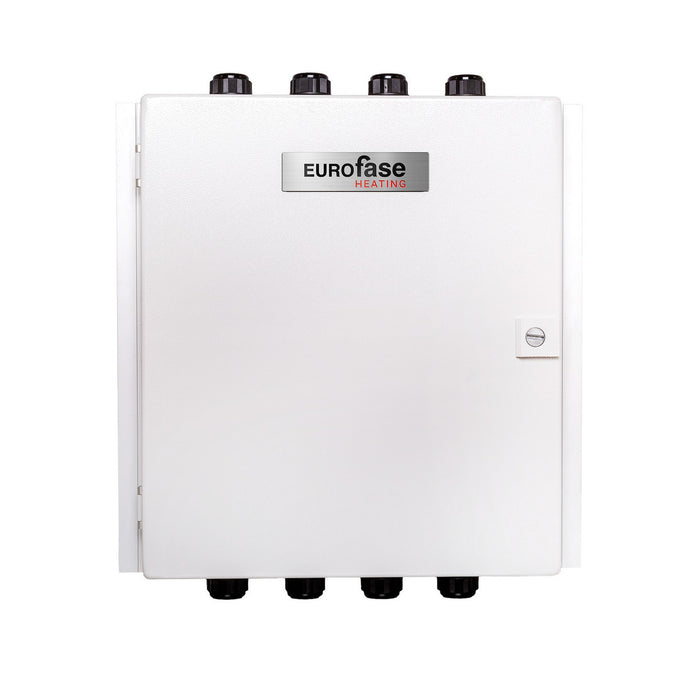

The Eurofase EFURCB24M2 is a 240V two-zone universal relay control box for compatible Eurofase electric patio heater systems. It is designed to help control multiple heaters and divide an outdoor or indoor heating layout into two separately managed comfort zones.
This control box is intended for planned heater systems where total connected load, zone design, control method, and electrical service have been confirmed before installation. The stored specifications list 50A zone capacity, 200A maximum amperage, 0-10V DC control voltage, surface mounting, and indoor/outdoor use when installed according to the manufacturer's instructions. Before ordering, confirm the heater models, voltage, amperage, number of heaters per zone, control accessories, enclosure location, wiring method, disconnect requirements, and code requirements. Because this equipment controls high-load electric heaters, layout and installation should be completed by a qualified electrical professional.
Key Features:
- 2-zone universal relay control box
- 240V operation
- Designed to control multiple compatible heaters
- 0-10V DC control voltage
- Supports dimming and zone control when paired with compatible controls
- NEMA 4 enclosure rating
- Surface-mount installation
Common Uses:
- Two-zone electric patio heater control
- Restaurant and hospitality heating layouts
- Large residential outdoor seating areas
- Compatible indoor or outdoor Eurofase heater systems
Technical Specifications:
-
SKU: EFURCB24M2
-
Product Type: Universal relay control box
-
Input Voltage: 240V
-
Zone Capacity: 50A
-
Maximum Amperage: 200A
-
Control Voltage: 0-10V DC
-
Mounting Type: Surface mount
-
Material: Steel
-
Dimensions: 16.25 in. H x 16 in. W x 6 in. D
-
Weight: 21.15 lb
Compatibility and Installation Notes:
Confirm the connected heater load and control plan before purchase. Installation should be performed by a qualified electrical professional following Eurofase instructions and applicable electrical requirements.
FAQ:
How many zones does this control box support?
It supports two zones.
What control voltage is listed?
The stored specifications list 0-10V DC control voltage.
Can it be used outdoors?
The product is listed with a NEMA 4 enclosure rating, but installation must still follow the manufacturer's location and wiring requirements.
