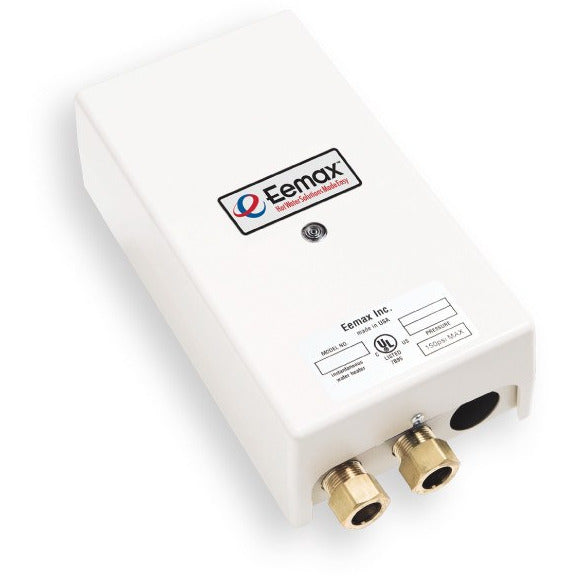

Eemax SPEX012240T 11.5kW Electric Tankless Water Heater

Specifications Owner's Manual

Choosing the right Tankless Electric Water Heater for your home.

FEATURES

• On demand hot water - no delay
• Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
• 99% Efficient, .99 energy factor
• Endless hot water - No storage capacity to deplete
• Reduces installation cost and material - No T&P valve required (check local codes)
• Select Models supplied with a PCA flow restricting aerator - ensures proper volume and effective flow.
• Easy Installation - Simple compression fittings that require no soldering. Unit mounts directly to the wall with common hardware.
• Prevents Legionella bacteria growth
• Reduces calcification and sedimentation
• Field Serviceable - All major component are field replaceable and readily available
• Proudly made In the USA

California P65 Warning

Performance

• GPM Turn On: 0.7
• Physical Max Volume: 2.0 gpm
• Minimum Operating Temp: N/A
• Max Operating Temp: 140°
• Minimum Operating Pressure: 25 PSI
• Max Pressure Rating: 150 PSI

Electrical

• Power: 11.5kW
• Volts: 240V
• Phase: Single
• Amperage: 48
• Recommended Wire Size: 6AWG

Physical

• Height: 9.67 inches
• Width: 5.22 inches
• Depth: 3 inches
• Weight: 4 lbs
• Color: White
• Cover Material: ABS-UL 94V0
• Element Type: Replaceable cartridge - bare wire
• Element Material: Ni Chrome

Plumbing

• Water Connection: 1/2'' (5/8'' OD)
• NPT or Compression: Compression
• Plumbing Configuration: Bottom
• Hot or Cold Feed: Pre-heated or Cold water Inlet
• Aerator Supplied: No
• # of Aerators Supplied: N/A
• GPM Flow Rate of Aerator Supplied:: N/A

Electrical Specifications
Power: 11.5kW
Volts: 240V
Phase: 1
Amperage: 0
Recommended Wire Size: 8 AWG
Performance Specifications
GPM Turn On: 0.2
Physical Max Volume: 0 gpm
Minimum Operating Temp: 70
Max Operating Temp: 140
Minimum Operating Pressure: 35 PSI
Max Pressure Rating: 150 PSI

Height: 9 inches
Width: 5 inches
Depth: 3 inches
Weight: -
Color: White
Cover Material: ABS-UL 94 5VA Rated
Element Type: Replaceable cartridge - bare wire
Element Material: Nichrome
