Spec Sheet Install Manual

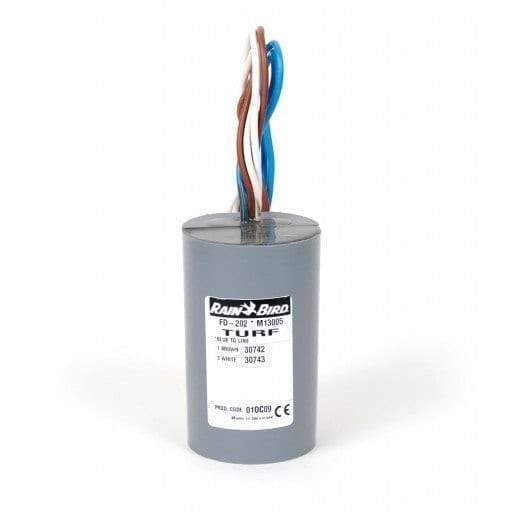

Rain Bird Field Decoders provide easy, cost-effective installation and expansion for SiteControl Decoder or ESP-LXD Decoder Central Control Systems. Decoders are installed out of sight to help protect them from the elements and vandalism.
Select different decoders to operate one, two, four, or six valves/solenoids. Five different decoders let you choose the amount of control you need.
A simple wiring configuration and absence of protective enclosures keeps installation and maintenance costs low. Rain Bird decoders are a “true lower than 30 volt” system that utilize a two-wire path of 14-gauge wire connecting the central control system, decoders and valves or valve-in-head sprinklers.
With all electronic components fully sealed within a water?tight enclosure and buried underground, damage from floods, frost, rodents or vandals is virtually eliminated. Rain Bird decoders are an especially good choice for flood plains.
- Operates 2 individual valves or 2 pairs of automatic irrigation valves
- Fully waterproof; mount inside a valve box or direct burial
- Address pre-coded from the factory (no switches)
- Easy, cost-effective installation, expansion and upgrade for Rain Bird ESP-LXD and/or SiteControl two-wire decoder systems
- Installed out of sight and protected from the elements and vandalism
- Enables advanced diagnostics and sensor features
- Use with Rain Bird DB Series Wire Connectors for the most reliable, water-tight connections
