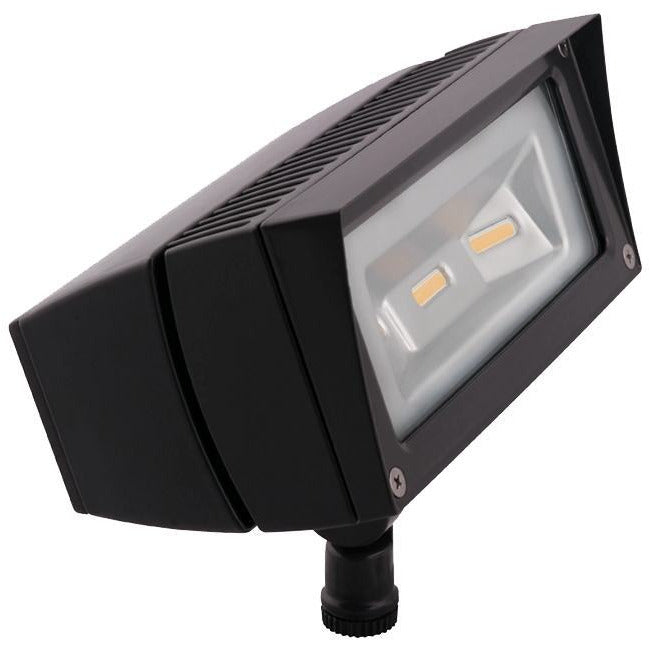

RAB Lighting FFLED18 Series LED Floodlight, Bronze or White
Brand: RAB Lighting | SKU: FFLED18, FFLED18W, FFLED18N
Product Overview
Light signs, building fronts and landscape features with a broad rectangular floodlight. The FFLED18 family pairs a 7H x 6V beam with an aimable knuckle mount. Choose the finish and white-light color by model: FFLED18 is bronze/5000K, FFLED18W is white/5000K, and FFLED18N is bronze/4000K.
Key Features
- Broad NEMA 7H x 6V flood distribution.
- 120–277V AC driver for line-voltage installations.
- Die-cast aluminum body and mounting arm.
- IP66 rated and UL listed for wet locations.
Common Uses
- Building façade illumination.
- Sign lighting.
- Landscape and outdoor security lighting.
Technical Specifications
- Family: FFLED18; LED wattage class: 18W
- FFLED18: bronze, 5000K, 2,429 lm, 19.7W input, 71 CRI, 5.7 lb
- FFLED18W: white, 5000K, 2,429 lm, 19.7W input, 71 CRI, 3.9 lb
- FFLED18N: bronze, 4000K, 2,416 lm, 19.6W input, 82 CRI, 3.9 lb
- Supply: 120–277V AC, 50/60Hz; constant-current Class 2 driver
- Surge protection: 6 kV; distribution: 7H x 6V
- Wet-location listing: UL; enclosure rating: IP66
- Starting temperature: -40°F; maximum ambient: 104°F
- L70 rating: 100,000 hours
Dimensions
Manufacturer drawings show 7-inch height, 8 2/3-inch width and 5-inch depth (178 × 221 × 128 mm). Leave additional space for the mounting arm, aiming and wiring.
Compatibility & Installation Notes
Match the selected variant's finish and color temperature before ordering. These models are line-voltage floodlights, not 12V landscape lights. Isolate power before installation and follow the supplied wiring and grounding instructions. The base models do not include a photocell; do not assume a control accessory is supplied.
Frequently Asked Questions
Which variant has a white finish?
FFLED18W has a white finish and 5000K light. FFLED18 and FFLED18N have bronze finishes.
Which variant provides 4000K light?
Choose FFLED18N for 4000K neutral-white light. FFLED18 and FFLED18W provide 5000K cool-white light.
Can these lights run from a landscape transformer?
These FFLED18 models require 120–277V AC and are not compatible with a 12V landscape transformer.
Why Buy from Big Frog Supply?
Choose the FFLED18 family when a broad 7H x 6V beam fits a sign, façade or landscape area better than a narrow spot. FFLED18W combines a white housing with 5000K light for light-colored exteriors; bronze FFLED18N provides a 4000K alternative. Check the variant mapping before ordering so finish and light color suit the surrounding surfaces.
Family: FFLED18; LED wattage class: 18W
FFLED18: bronze, 5000K, 2,429 lm, 19.7W input, 71 CRI, 5.7 lb
FFLED18W: white, 5000K, 2,429 lm, 19.7W input, 71 CRI, 3.9 lb
FFLED18N: bronze, 4000K, 2,416 lm, 19.6W input, 82 CRI, 3.9 lb
Supply: 120–277V AC, 50/60Hz; constant-current Class 2 driver
Surge protection: 6 kV; distribution: 7H x 6V
Wet-location listing: UL; enclosure rating: IP66
Starting temperature: -40°F; maximum ambient: 104°F
L70 rating: 100,000 hours
Manufacturer drawings show 7-inch height, 8 2/3-inch width and 5-inch depth (178 × 221 × 128 mm). Leave additional space for the mounting arm, aiming and wiring.
