Install Manual

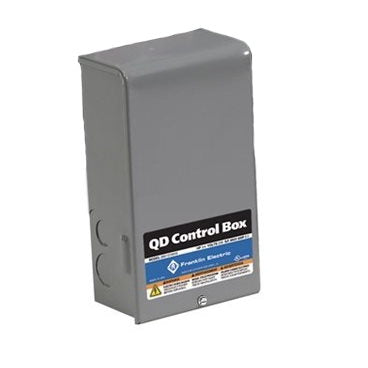

Franklin single-phase controls are designed and optimized specifically for Franklin Electric motors. Controls are an integral part of a submersible motor power system. Rigorous component testing ensures the most robust products in the industry.

QD & CRC Features:

  • Exclusive Franklin Electric QD Relay
  • Suitable for outdoor mounting
  • Capacitor Start
  • Run Capacitor (Only CRC Boxes)
  • UL listed for US and Canada (60 Hz models)

Standard, Deluxe & XL Deluxe Features:

  • Heavy duty box-type terminals accept up to AWG #2 wire
  • External access to overload resets
  • Multiple-size knockouts
  • User-friendly connection diagrams
  • Easy access to grounding lugs

              Volts 230 VAC
              Control Box Max Amps 10.4 A
              Rating 1 hp / .75 kW
              Control Box Nominal Amps 8.2 A
              Hz 60 Hz
              Input Phase Single-Phase
              Input Voltage 230 VAC
              Control Box Type QD
              Enclosure Rating Type 3R
              Minimum Operating Temperature 14 °F
              Maximum Operating Temperature 122 °F
              Storage Temperature -13° to 144 °F (-25° to 65 °C)

              Product Length 4.81 "
              Product Width 2.84 "
              Product Height 8.41 "
              Product Weight 3.75 lb
              Product Weight with Pack 4 lb
              Carton Length 5.5 "
              Carton Width 3.25 "
              Carton Height 9 "
              Bottom Knockout Two 0.88" knockouts and one 1.31" knockout
