Product Overview

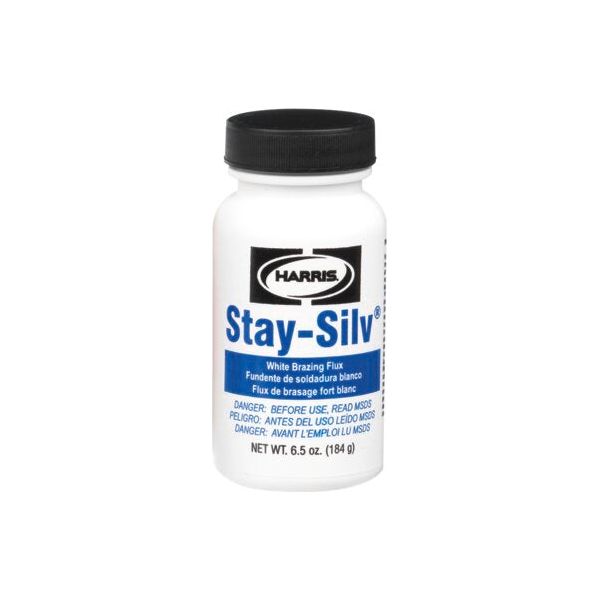

Harris SSWF7 Stay-Silv White Brazing Flux is an all-purpose, low-temperature paste flux supplied in a 6.5-ounce jar with a brush cap. It is formulated for silver-brazing applications that use normal heating cycles and is designed to spread smoothly, provide even coverage, and protect compatible base metals as the assembly approaches brazing temperature. The attached brush cap supports controlled application at joints, fittings, and other localized work areas.
Stay-Silv White Flux is recommended for copper and copper alloys other than aluminum bronze, as well as steel, stainless steel, nickel alloys, and other ferrous base metals. It may be used with many high-silver brazing filler metals and with suitable phosphorus-copper-silver alloys, including copper-to-brass work. Harris specifies an active temperature range of 1,050°F to 1,600°F (565°C to 870°C). It is not recommended for aluminum, magnesium, or titanium. Flux residue should be removed after brazing according to the manufacturer’s guidance to reduce the possibility of corrosion. Read the current label and Safety Data Sheet before use, and follow appropriate ventilation, personal-protective-equipment, and hot-work procedures.
Key Features:
- White paste flux for silver brazing
- 6.5-ounce jar with integrated brush cap
- Smooth application and even joint coverage
- Active temperature range of 1,050°F to 1,600°F
- Suitable for many copper, steel, stainless-steel, and nickel-alloy applications
- Designed for normal heating cycles
Common Uses:
- Silver brazing copper and copper alloys except aluminum bronze
- Copper-to-brass joints
- Brazing steel, stainless steel, and nickel alloys
- HVAC, plumbing, maintenance, and fabrication work using compatible filler metals
Technical Specifications:
- Manufacturer part number: SSWF7
- Product line: Stay-Silv White
- Product type: Brazing flux
- Form: White paste
- Container: 6.5-ounce brush-cap jar
- Activity range: 1,050°F to 1,600°F (565°C to 870°C)
- AWS classification: A5.31 Class FB3-A
- Additional specifications: AMS 3410; Federal Specification O-F-499 Type B; EN 1045 Type FH10
- Not recommended for: Aluminum, magnesium, or titanium
Important Safety and Use Note:
Flux fumes, hot metal, and heating equipment can be hazardous. Read the current Harris label and Safety Data Sheet before use. Provide appropriate ventilation, wear required eye, skin, and respiratory protection, follow established hot-work procedures, and remove post-braze residue according to manufacturer guidance.
FAQ
What metals can this flux be used with?
It is intended for many copper and copper-alloy applications, steel, stainless steel, nickel alloys, and other ferrous base metals. It is not recommended for aluminum, magnesium, or titanium.
What is the active temperature range?
Harris specifies 1,050°F to 1,600°F (565°C to 870°C).
Does the jar include an applicator?
Yes. The 6.5-ounce container has a brush cap for localized application.
Should the residue be left on the joint?
No. Remove flux residue after brazing according to the current manufacturer instructions to help reduce potential corrosion.
Why Buy Harris SSWF7 Stay-Silv White Flux From Big Frog Supply?
Big Frog Supply identifies the exact Harris part number, brush-cap package size, active temperature range, compatible materials, exclusions, and recognized flux classifications so buyers can match the product to the intended brazing process before ordering.
