Product Overview
The Hinkley 1518TT-LL Atlantis is a 22-inch-tall low-voltage path light with a titanium finish, an angular minimalist profile, and a shielded etched lens that directs illumination toward the ground. Its narrow 1.75-inch body and 6.5-inch-wide horizontal head suit contemporary landscapes where the fixture should provide useful walkway light without adding a bulky decorative silhouette. The aluminum construction is wet rated for outdoor exposure, and a ground spike and wiring kit are supplied for installation in compatible landscape areas.
This socketed fixture includes one EA-LMW-1.5W2 mini-wedge LED lamp rated at 1.5 watts, 2700K, 150 lumens, and 80 CRI. Hinkley lists an estimated lamp life of 40,000 hours and an electrical load of 2.3 volt-amps. The fixture operates on a 12-volt landscape-lighting system and requires a transformer, sold separately unless the listing specifically states otherwise. Dimming is supported when the system uses compatible magnetic low-voltage control on the transformer primary. The included 36-inch lead wire helps connect the fixture to the planned low-voltage cable run. The titanium finish provides a cool metallic tone that coordinates with gray stone, concrete, stainless details, and contemporary exterior finishes. Confirm the transformer capacity, fixture spacing, cable gauge, voltage drop, connector method, and installation location before ordering.
Key Features:
- Minimalist Atlantis path-light design
- Titanium finish over aluminum construction
- Etched lens directs light toward the path surface
- Included 1.5-watt, 2700K mini-wedge LED lamp
- 150-lumen output with 80 CRI
- Wet rated for outdoor use
- Ground spike and wiring kit included
- Dimmable through compatible MLV control at the transformer primary
Common Uses:
- Walkways and garden paths
- Driveway edges and arrival areas
- Planting beds and contemporary landscape borders
- Outdoor spaces with gray, silver, or stone finishes
Technical Specifications:
- Fixture type: 12V large LED path light

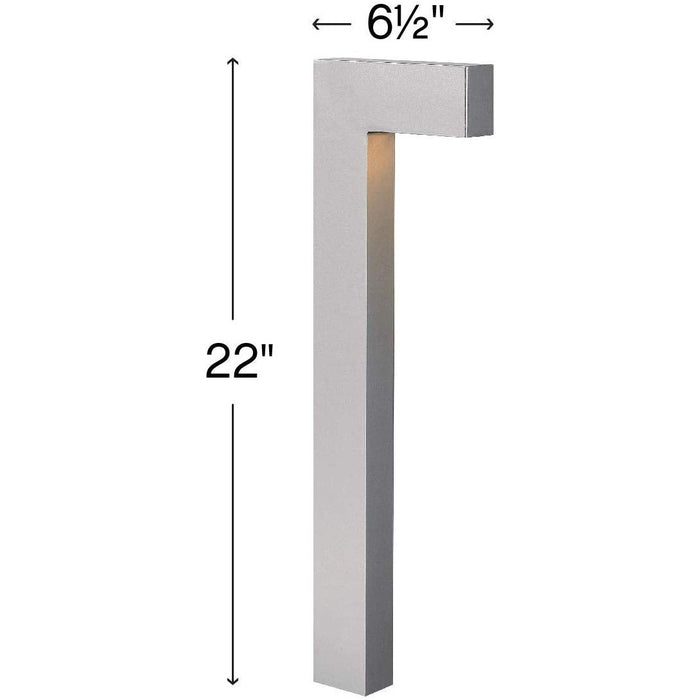

- Overall dimensions: 6.5 inches wide x 22 inches high x 1.75 inches deep
- Material: Aluminum
- Finish: Titanium
- Lens: Etched
- Light source: Socketed EA-LMW-1.5W2 mini-wedge LED, included
- Wattage: 1.5 watts
- Voltage: 12 volts
- Volt-amps: 2.3
- Color temperature: 2700K
- Output: 150 lumens
- CRI: 80
- Estimated LED life: 40,000 hours
- Lead wire: 36 inches
- Location rating: Wet rated
- Transformer required: Yes
Installation and System Notes:
Use this fixture only with a compatible 12-volt landscape-lighting transformer and properly sized low-voltage cable. Account for the 2.3-VA load when calculating transformer capacity. Confirm voltage at the fixture, suitable outdoor connectors, cable routing, drainage, and stable ground-spike placement. Follow the current Hinkley installation instructions and applicable electrical requirements.
FAQ
Is the LED lamp included?
Yes. Hinkley includes a 1.5-watt, 2700K EA-LMW-1.5W2 mini-wedge LED lamp.
Does this fixture need a transformer?
Yes. It operates on a 12-volt low-voltage landscape-lighting system, and the transformer is sold separately unless explicitly included.
Can the light be dimmed?
Hinkley identifies it as dimmable with compatible MLV control on the transformer primary.
What is included for installation?
A ground spike and wiring kit are supplied with the fixture.
