Product Overview

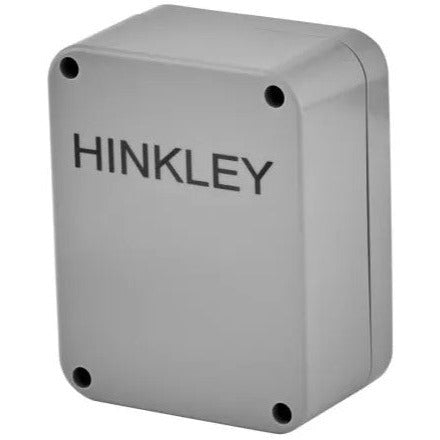

The Hinkley 0150WLC Smart Landscape Control + Dimmer adds app-based scheduling, zone control, load monitoring, and low-level dimming to a compatible low-voltage magnetic landscape-lighting transformer. The controller is powered by the transformer’s 12-volt output tap and mounts to the side of the transformer through a conduit opening, keeping its connection points within the transformer enclosure. Its connector harness provides two pairs of 10 AWG independent taps for two separately controlled lighting zones.
Each zone supports up to 75 watts, for a maximum combined connected load of 150 watts. Through the Hinkley Home Automation App, users can turn zones on or off, adjust brightness, create schedules, and review the wattage being used by each zone. Initial pairing uses Bluetooth, while ongoing control is provided through Wi-Fi. Hinkley also identifies compatibility with Alexa and Google smart-home devices. For larger systems, multiple controllers may be used with a transformer rated at 300 watts or more, provided all connected-load and transformer requirements are followed. This accessory does not replace the transformer and should be selected only after confirming the transformer type, available conduit opening, zone wattage, mobile-network requirements, and planned low-voltage wiring.
Key Features:
- Two independent dimming zones
- Maximum load of 75 watts per zone and 150 watts total
- App-based on/off control, brightness adjustment, and scheduling
- Reports connected wattage by zone
- Bluetooth pairing with Wi-Fi control
- Connector harness provides two pairs of 10 AWG taps
- Powered from a compatible transformer output tap
- Mounts through the transformer’s side conduit opening
Common Uses:
- Separating front-yard and backyard landscape-lighting zones
- Creating independent path, accent, or patio-light schedules
- Monitoring wattage before adding fixtures to an existing zone
- Adding remote dimming to compatible magnetic low-voltage systems
Technical Specifications:
- Product type: Smart low-voltage landscape controller and dimmer
- Maximum controller load: 150 watts
- Zones: Two independent 75-watt maximum zones
- Input voltage: 12 volts from transformer output
- Transformer compatibility: Low-voltage magnetic transformer
- Wireless connection: Bluetooth pairing; Wi-Fi control
- Tap connections: Two pairs of 10 AWG independent taps
- Width: 3.5 inches
- Height: 4.5 inches
- Depth: 2.3 inches
- Material: Composite
- Finish: Light gray
Compatibility and Installation Notes:
Confirm that the connected transformer is magnetic low voltage, has a compatible conduit opening, and can support the total planned fixture load. Do not exceed 75 watts on either zone or 150 watts combined. A 300-watt or larger transformer may support multiple controllers only when the transformer capacity, wiring, and individual zone limits are observed. Installation and line-voltage transformer work should be completed according to the current Hinkley instructions and applicable electrical requirements.
FAQ
Does the 0150WLC replace the landscape transformer?
No. It is an accessory powered by the output of a compatible low-voltage magnetic transformer.
Can each zone be dimmed separately?
Yes. The controller provides two independent zones, each rated for a maximum connected load of 75 watts.
Can the app show how much wattage a zone is using?
Yes. Hinkley states that the app reports wattage by zone.
Can more than one controller be installed?
Hinkley states that transformers rated at 300 watts or more may use multiple controllers. Confirm transformer capacity and all connected loads before installation.
