Product Overview
The HOME-FLEX 18-440-007 is a bent anodeless service or meter riser that transitions a 3/4-inch IPS underground polyethylene gas line to a 3/4-inch steel male pipe thread connection at or above grade. Its protected metal section provides a controlled transition where buried yellow poly pipe approaches a meter, regulator, or approved above-ground metal piping connection. HOME-FLEX lists the riser in a 30-inch by 19-inch configuration and identifies current IPEX product code 251026 for the same 3/4-inch size.
The plain polyethylene end connects to the compatible underground pipe run through a properly selected HOME-FLEX Underground coupling or another manufacturer-approved joining method. The steel MIP end is intended for the permitted threaded connection specified by the system designer, gas utility, or authority having jurisdiction. This riser is part of the direct-burial HOME-FLEX Underground system for natural gas and propane and is listed by the manufacturer under ASTM F1973. The current catalog specifies a maximum working pressure of 90 PSI and maximum working temperature of 140°F. The riser body must not be shortened or altered; placement, burial depth, support, tracer wire, corrosion protection, pressure testing, and final meter or piping connection must follow current manufacturer instructions and local requirements.
Key Features:
- 3/4-inch IPS poly to 3/4-inch steel MIP transition
- Bent 30-inch x 19-inch anodeless riser configuration
- Provides a protected transition from buried poly pipe to metal piping
- For HOME-FLEX Underground natural-gas or propane systems
- ASTM F1973 product family
- Current IPEX cross-reference product code 251026
Common Uses:
- Transitioning an underground gas service toward a meter location
- Bringing buried yellow poly pipe to an approved above-grade threaded connection
- Completing a professionally designed natural-gas or propane distribution system
Technical Specifications:
- Shopify SKU / legacy VPC number: 18-440-007
- Current IPEX product code: 251026
- Product type: Bent anodeless service or meter riser
- Underground connection: 3/4-inch IPS poly pipe
- Metal connection: 3/4-inch steel MIP

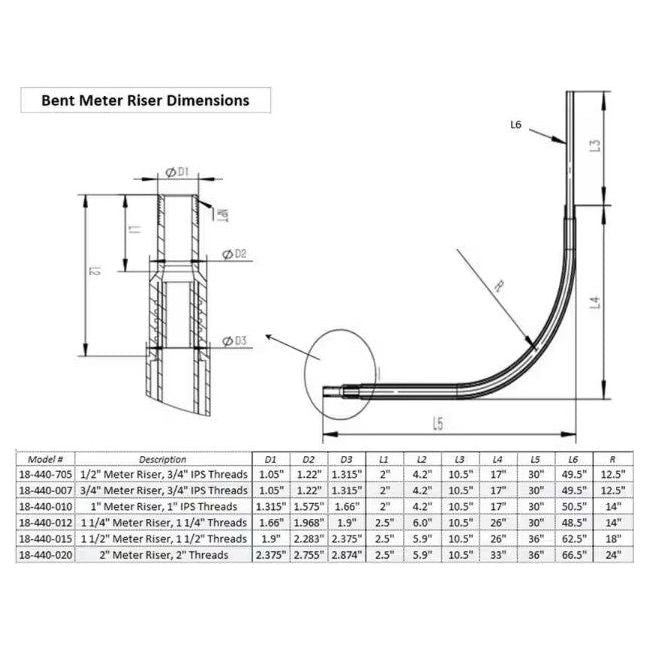

- Manufacturer configuration: 30 inches x 19 inches
- Fuel compatibility: Natural gas and propane
- Maximum working pressure: 90 PSI
- Maximum working temperature: 140°F
- Standard: ASTM F1973
- Connection accessory: Compatible underground coupling required for the plain poly end
Important Installation Note:
Fuel-gas service work must be completed by qualified personnel according to the gas utility, authority having jurisdiction, current HOME-FLEX manual, and local codes. Do not alter the riser body or expose yellow polyethylene pipe above grade. Confirm the meter connection, regulator arrangement, burial depth, tracer wire, support, and testing requirements before installation.
FAQ
Does this riser connect directly to yellow poly pipe?
The plain poly end requires a compatible underground coupling or an approved joining method specified for the system.
What is the threaded connection size?
The steel end has a 3/4-inch male pipe thread.
Can the riser be shortened?
The manufacturer states that the riser body must not be altered. Installation depth should be planned around the supplied configuration.
Can the final meter connection be completed by anyone?
No assumption should be made. Utility and local rules determine who may make the final connection.
