Brand: Hunter Industries SKU: ICCFPUP2
Product Overview

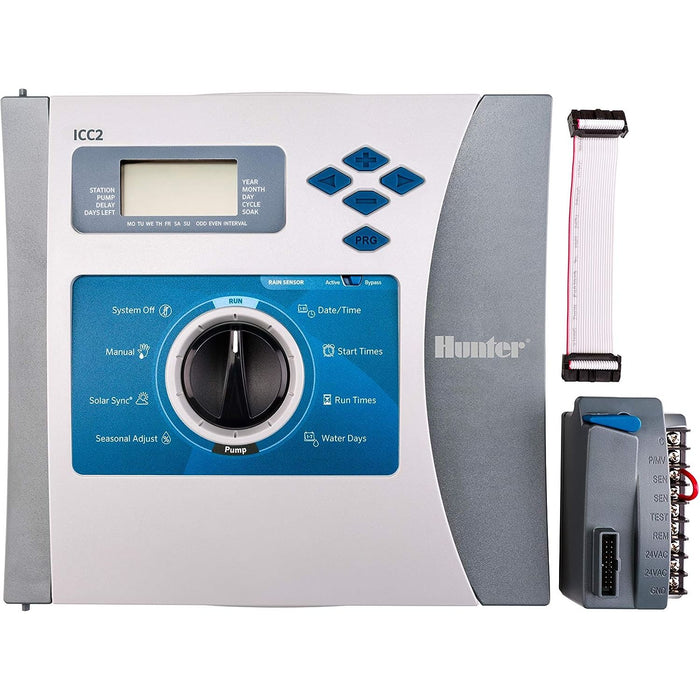

The Hunter ICC-FPUP2 is an ICC2 retrofit kit for compatible original Hunter ICC irrigation controllers. The Big Frog Supply variant is stored under SKU ICCFPUP2. It is intended to update an existing ICC controller using the original compatible enclosure and installed field wiring rather than replacing the entire controller cabinet. The listing identifies the faceplate, main module, and connecting cable used for the retrofit assembly.
After a proper retrofit, the controller uses the ICC2 programming platform, which supports four independent irrigation programs with eight start times per program and can operate any two programs simultaneously within the controller’s electrical limits. ICC2 supports conventional systems from eight stations up to 38 stations in compatible plastic enclosures or up to 54 stations in compatible metal and pedestal configurations. Compatible ICM-400, ICM-800, and ICM-2200 modules are used for conventional station expansion.
The retrofit platform can also support current ICC2 accessories when the complete controller configuration is compatible, including Hunter sensors, ROAM-family remotes, optional Centralus communication kits, and the EZ Decoder System. This kit should be selected by verifying the existing controller model, enclosure, transformer, installed station modules, and required station count. It is not a universal replacement faceplate for unrelated Hunter controllers.
Key Features
- Hunter ICC2 retrofit kit for compatible original ICC controllers
- Updates the controller facepack and main control assembly
- Reuses the compatible existing enclosure and field wiring
- Supports four independent programs with eight start times each
- Allows two programs to operate simultaneously within system limits
- Compatible with current ICC2 station expansion architecture
- Can support optional Centralus, sensor, remote, and decoder upgrades when properly configured
Common Uses
- Modernizing an original Hunter ICC controller
- Replacing a failed compatible ICC facepack and processor assembly
- Retaining an existing ICC enclosure during an ICC2 upgrade
- Preparing a compatible controller for current ICC2 accessories
Compatibility and Installation Notes
- Confirm the existing controller is a compatible original Hunter ICC model.
- Verify enclosure type, transformer, installed output modules, and station requirements.
- Disconnect electrical power before removing or installing controller components.
- Follow Hunter’s ICC2 retrofit, grounding, and wiring instructions.
- Communication kits, sensors, remotes, station modules, and decoder equipment are sold separately.
- Installation should be completed by a qualified irrigation professional when required.
Frequently Asked Questions
Is ICCFPUP2 a complete irrigation controller?
No. It is a retrofit kit for a compatible existing original ICC controller and enclosure.
Can it be used with any Hunter controller?
No. It is specifically intended for compatible original ICC systems. It is not a universal faceplate for Pro-C, I-Core, ACC, or other controller families.
Does the kit add Wi-Fi by itself?
No. Centralus connectivity requires a compatible optional communication kit and network connection.
