Product Overview

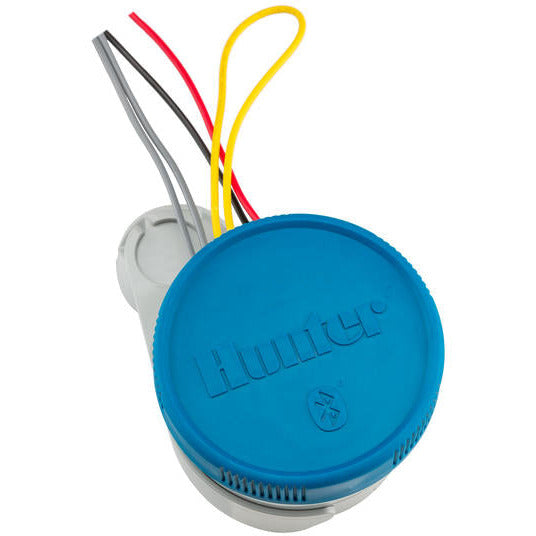

The Hunter NODE-BT-400 is a four-station, battery-powered irrigation controller with Bluetooth smartphone programming. It controls as many as four independent DC-latching valve solenoids in locations where AC power or a conventional controller wire path is unavailable. The controller is supplied without solenoids so the installer can select compatible components for the valves and piping already on site.

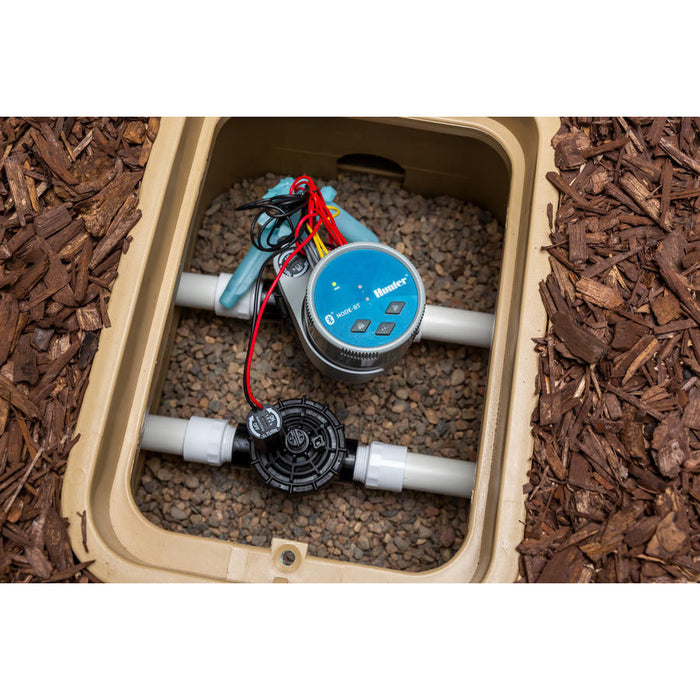

The waterproof unit can be mounted in a valve box, on a pipe, on a flat surface, or near compatible Hunter valves. Through the NODE-BT app, users can create schedules, review battery status, suspend irrigation, use Cycle and Soak, and operate stations manually while within Bluetooth range.
Key Features
- Controls up to four irrigation stations
- Bluetooth programming from a compatible smartphone
- Solenoids sold separately
- Up to approximately 50 feet of line-of-sight communication range
- Three programs with eight start times per program
- Run times from 1 second to 12 hours
- Manual push-button operation
- Waterproof IP68 enclosure
- Operates from one or two 9V alkaline batteries
- Pump/master-valve output available for supported designs
Common Uses
- Four-zone gardens, parks, traffic medians, and greenhouses
- Remote valve clusters without AC power
- Retrofits where running multi-conductor controller wire is difficult
- Temporary or seasonal irrigation installations
Technical Specifications
-
Stations: 4
-
Station Output: 9–11 VDC
-
Included Solenoids: None
-
Power: One or two 9V alkaline batteries
-
Bluetooth Range: Up to approximately 50 ft line of sight
-
Maximum Solenoid Wire Run: 100 ft with minimum 18 AWG wire
-
Sensor Inputs: 2
-
Enclosure: IP68
Compatibility and Installation Notes
Up to four compatible DC-latching solenoids are required and sold separately. Use the Hunter 458200 DC-latching solenoid with compatible Hunter plastic valves. Standard 24 VAC solenoids are not compatible. Use waterproof wire connections and verify battery, station, master-valve, and sensor wiring against the current Hunter instructions.
Frequently Asked Questions
Are the valve solenoids included?
No. NODE-BT-400 is supplied as the four-station controller. Compatible DC-latching solenoids are ordered separately.
Can one phone manage multiple NODE-BT controllers?
Yes. The app can be used to manage multiple controllers, with local Bluetooth communication to the controller currently being serviced.
Is NODE-BT-400 a Wi-Fi controller?
No. It uses local Bluetooth communication and does not require a Wi-Fi connection for field programming.
Why Buy the Hunter NODE-BT-400 from Big Frog Supply?
This model brings four independently controlled stations to a site without AC power. Big Frog Supply identifies the separate solenoid requirement and links the compatible Hunter DC-latching option so the controller can be planned as a complete working system.
Product type: Bluetooth battery-powered irrigation controller
Stations: 4
Included solenoids: No
Required solenoids: Compatible DC-latching solenoids
Station output: 9–11 VDC
Power: One or two 9V alkaline batteries
Bluetooth range: Up to approximately 50 ft line of sight
Maximum solenoid wire run: 100 ft with minimum 18 AWG wire
Programs: 3
Start times per program: 8
Station run time: 1 second to 12 hours
Sensor inputs: 2
Enclosure rating: IP68
