Brand: Hunter Industries SKU: PGP-ADJ-7-4K
Product Overview

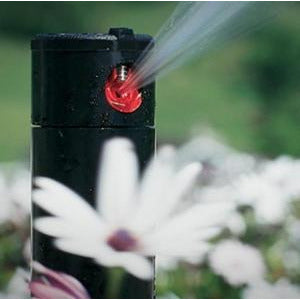

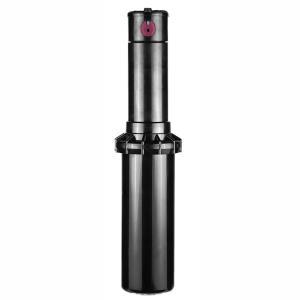

The Hunter PGP-ADJ-7-4K package includes four PGP-ADJ 4-inch pop-up rotors, compatible nozzle trees, and a Hunter adjustment tool. It is intended for small rotor zones, multi-head replacement projects, and residential installations that benefit from having nozzle choices and the setup tool included in the same package. Each rotor uses a 3/4-inch female NPT inlet and can be adjusted from a 40-degree part-circle pattern through full 360-degree operation.
The PGP platform supports 27 nozzle choices across standard and low-angle families. Depending on the installed nozzle and operating pressure, Hunter publishes approximately 22 to 52 feet of radius and 0.5 to 14.1 GPM. Recommended pressure is 25 to 70 PSI, with an operating range of 20 to 100 PSI. The included nozzle trees allow the installer to match the heads to zone flow, spacing, and trajectory requirements, while the tool supports arc and radius adjustment.

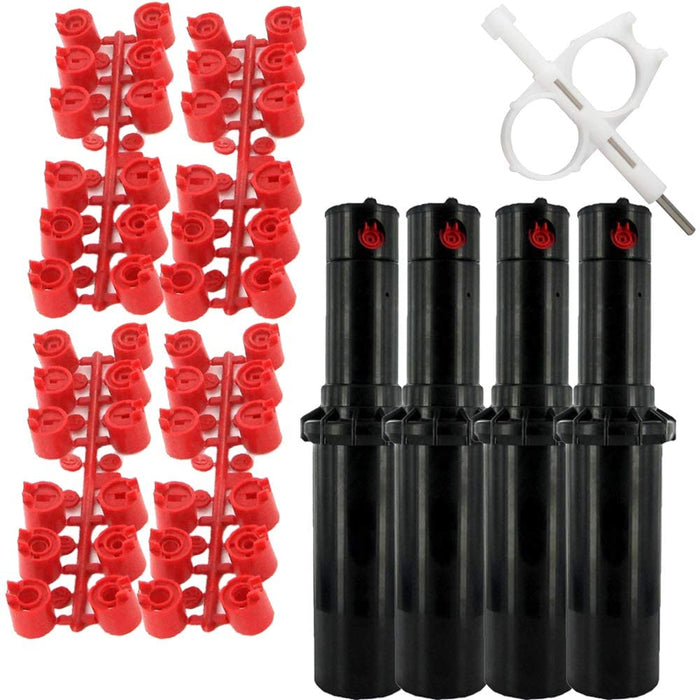

Package Contents
- 4 Hunter PGP-ADJ 4-inch adjustable rotors
- Compatible PGP nozzle trees
- 1 Hunter rotor adjustment tool
- Check valves are not identified as included
Key Features
- Adjustable 40°–360° arc
- Approximate 22- to 52-foot radius range
- Approximate 0.5- to 14.1-GPM flow range
- 27 compatible nozzle choices
- 3/4-inch female NPT inlet
- QuickCheck and through-the-top adjustment
Common Uses
- Four-head lawn zones
- Replacing several compatible PGP rotors
- Small residential installation projects
- Projects requiring nozzle-selection flexibility
Compatibility and Installation Notes
Select nozzle sizes according to the available pressure, total zone flow, head spacing, and required trajectory. Use compatible 3/4-inch swing joints or threaded fittings. The package title identifies nozzle trees and an adjustment tool but does not identify included check valves.
Why Buy from Big Frog Supply?
Big Frog Supply carries Hunter PGP rotor packages, nozzle trees, adjustment tools, swing joints, valves, and irrigation repair components.
Product Type PGP-ADJ rotor package with nozzles and tool
Manufacturer Rotor Model PGP-ADJ
Store SKU PGP-ADJ-7-4K
Package Quantity 4 rotors
Included Accessories Compatible nozzle trees; 1 Hunter adjustment tool
Arc Range 40°–360°
Radius Range 22–52 ft depending on nozzle and pressure
Flow Range 0.5–14.1 GPM per rotor depending on nozzle and pressure
Recommended Pressure 25–70 PSI
Nozzle Choices 27 compatible choices
Check Valves Not identified as included
