Brand: Hunter Industries SKU: XC-400
Product Overview

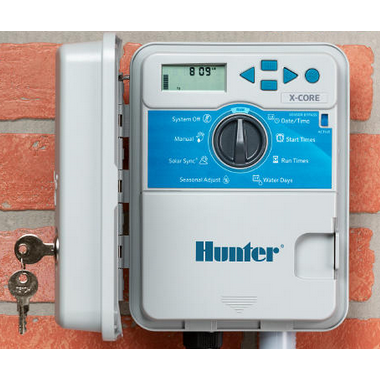

The Hunter XC-400 is a fixed four-station X-Core irrigation controller with a 120 VAC internal transformer, power cord, and plastic outdoor wall-mount enclosure. It is designed for residential sprinkler systems that need straightforward local programming, reliable control of up to four conventional irrigation zones, and compatibility with selected Hunter weather sensors and handheld remote accessories.
The controller provides three independent programs, four start times per program, and station run times up to four hours. Cycle and Soak can divide long watering periods into shorter applications to help manage slopes or slower-absorbing soils. Delay Between Stations supports slow-closing valves or water-supply recovery, while Seasonal Adjustment changes overall watering duration without requiring each station time to be rewritten.
QuickCheck diagnostics help locate field-wiring faults, and automatic short-circuit protection skips a damaged station while allowing the remaining program to continue. Easy Retrieve memory stores a preferred irrigation schedule for later restoration. The XC-400 is a locally programmed controller and does not support WAND, Wi-Fi, Bluetooth, or Hydrawise management.
Key Features
- Fixed four-station residential irrigation controller
- 120 VAC internal transformer with power cord
- Plastic outdoor wall-mount enclosure
- Three independent programs
- Four start times per program
- Maximum station run time of four hours
- Cycle and Soak and Delay Between Stations
- Seasonal Adjustment and programmable rain delay
- QuickCheck wiring diagnostics and short-circuit protection
- One sensor input and pump/master-valve output
- Compatible with supported Hunter ROAM remote systems through SmartPort
Common Uses
- Four-zone residential sprinkler systems
- Lawns, planting beds, and mixed landscape zones
- Replacing a compatible fixed-station outdoor controller
- Systems using an optional Hunter rain or Solar Sync sensor
Technical Specifications
-
Stations: 4 fixed stations
-
Programs: 3
-
Start Times: 4 per program
-
Maximum Run Time: 4 hours per station
-
Transformer Input: 120 VAC
-
Transformer Output: 24 VAC, 1 A
-
Station Output: 24 VAC, 0.56 A
-
Pump/Master Valve Output: 24 VAC, 0.28 A
-
Sensor Inputs: 1
-
Cabinet: Plastic outdoor wall mount
Compatibility and Installation Notes
The XC-400 has four fixed station outputs and cannot be expanded. Use compatible 24 VAC irrigation valve solenoids. Optional sensors, SmartPort harnesses, remotes, pump relays, and valves are sold separately. Install on a stable vertical surface and connect to the specified grounded 120 VAC source according to Hunter instructions and applicable electrical requirements.
Frequently Asked Questions
Can the XC-400 be expanded beyond four stations?
No. It is a fixed four-station controller.
Does it support Wi-Fi or Hydrawise?
No. The X-Core platform is programmed locally and does not accept the Hunter WAND module.
Can it use a rain sensor?
Yes. The controller includes one input for compatible Hunter weather-sensing accessories.
Why Buy the Hunter XC-400 from Big Frog Supply?
The XC-400 is a straightforward choice for a four-zone property that does not need cloud management or future station expansion. Big Frog Supply also carries compatible Hunter sensors, SmartPort accessories, remotes, valves, and replacement components for the complete installation.
Product type: Fixed-station outdoor irrigation controller
Manufacturer part number: XC-400
Station count: 4 fixed stations
Transformer input: 120 VAC
Transformer output: 24 VAC, 1 A
Station output: 24 VAC, 0.56 A
Pump/master valve output: 24 VAC, 0.28 A
Sensor inputs: 1
Programs: 3
Start times per program: 4
Maximum run time: 4 hours per station
Cabinet: Plastic outdoor wall mount
Wi-Fi/Hydrawise: Not supported
