1" PVC LOCK

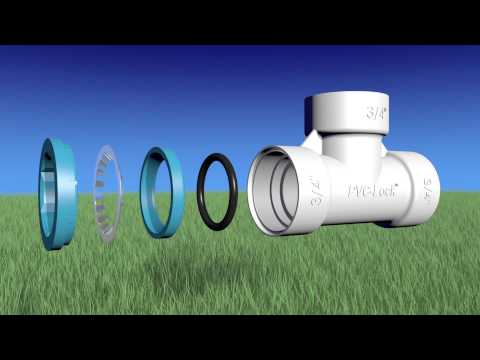

PVC-Lock® by Hydro-Rain® is a remarkable push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each PVC-Lock® fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures. Using PVC-Lock® fittings allows you to “lose the glue” and reduces traditional installation times by over 50%. With PVC-Lock® you’ll leave your project with clean hands and a clear conscience knowing that your installation crew and the environment are being protected from harmful chemicals.

FEATURES AND BENEFITS
  • Patent Pending “Push-and-Go” Design—100% tool and chemical free approach that cuts installation time in half or more.
  • PVC-Lock® Fittings are Chemical Free—Glueless, tool-free installation protects the environment and the long-term health of your crew.
  • Patent Pending Retaining System—Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
  • Swivels on the Pipe—After installation PVC-Lock® fittings can swivel 360° around the pipe allowing easy sprinkler head orientation and adjustment.
  • Universal—For use with all brands of Schedule 40 and 80, and Class PVC pipe.
  • Removable & Reusable—On-site sizing adjustments are easy using the PVC-Lock removal tool.
  • Pressure Rated—Use on either side of the irrigation valve.
PVC-Lock® Lateral Pipe Fittings:
· Max working pressure: 150 PSI (10.5 BAR at 68º F (20º C)
· Burst Pressure: 600 PSI (41.4 BAR)
· Working Pressure: 0 - 150 PSI (10.5 BAR)
· IAPMO IGC 300-2013 Certified











      BURST PRESSURE
      600 PSI

      OPERATING PRESSURE
      80 PSI

      OPERATING PRESSURE RANGE
      0 – 150 PSI

      COLOR
      White

      FLOW RATE
      1 – 30 GPM

      COMPATIBLE PIPE DIMESNION
      1" Schedule 40 and 80, and Class PVC pipe

      COMPATIBLE PIPE MATERIAL
      PVC

      MATERIAL
      PVC

      TEMPERATURE RATING
      100ºF

      UV RATING
      3 Year

      DIMENSIONS 1.375 × 2.125 × 1.5 in
