Product Overview

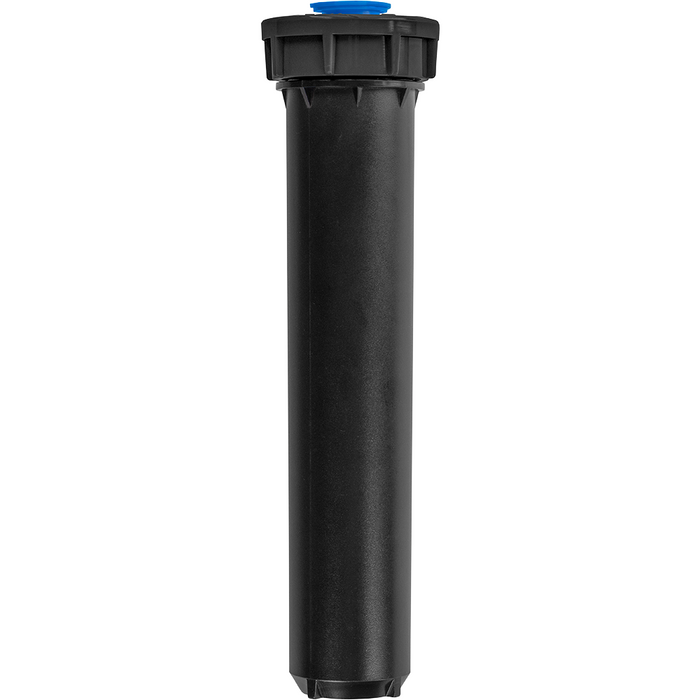

The Hydro-Rain HRS-200-06-FC is a 6-inch pop-up spray head body for commercial, municipal, and residential landscape irrigation. It accepts compatible female-threaded spray nozzles and provides a 1/2-inch inlet for connection to the irrigation lateral line.
Key Features
- 6 in. pop-up height
- 1/2 in. inlet
- Threaded riser for compatible female-threaded nozzles
- Pressure-activated stem and cap sealing surfaces
- Body pockets designed to help manage debris around the riser
- Compatible with Hydro-Rain HRN series nozzles
Common Uses
- Taller turf and landscape spray zones
- Residential and commercial irrigation systems
- Replacement spray-body installations requiring a 6-inch pop-up
Technical Specifications
-
Model: HRS-200-06-FC
-
Pop-Up Height: 6 in.
-
Body Height: 9 in.
-
Inlet: 1/2 in.
-
Cap Diameter: 2-1/4 in.
-
Operating Pressure: 10-90 PSI
-
Spacing Range: 3-20 ft., depending on installed nozzle
-
Flow-By: 0 at 5 PSI or greater
Compatibility & Installation Notes
This FC model is a standard spray-body configuration and should not be confused with HRS-200 PC pressure-regulating models. Select a compatible female-threaded nozzle based on the required radius and pattern, and verify pressure, spacing, inlet connection, and final grade before installation.
Frequently Asked Questions
Does HRS-200-06-FC include a pressure regulator?
No pressure-regulating feature is identified for this FC model; Hydro-Rain lists adjustable regulation on separate PC models.
What pop-up height does this model provide?
Six inches.
What nozzle type does it accept?
It is designed for compatible female-threaded spray nozzles, including Hydro-Rain HRN series nozzles.
Why Buy Hydro-Rain HRS-200-06-FC from Big Frog Supply?
The HRS-200-06-FC provides a 6-inch commercial spray-body option for landscape areas that need additional riser height while retaining broad female-threaded nozzle compatibility.
