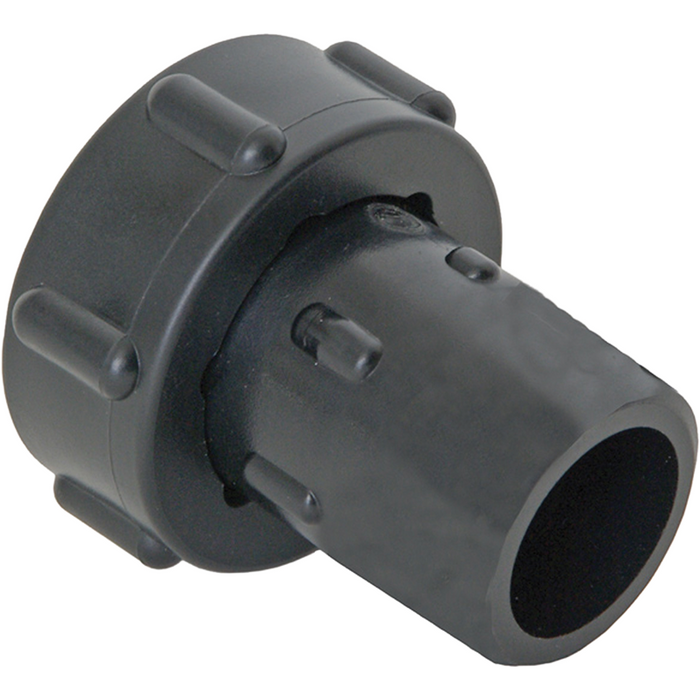

Hydro-Rain - HRM-100-US-1X - Female Buttress Thread Swivel x PVC Adapter (1" PVC Spigot OD and 3/4" PVC Socket ID)

Product Overview

The Hydro-Rain HRM-100-US-1X is a swivel transition adapter for the HRM 100 irrigation manifold system. It connects a compatible female buttress-thread manifold interface to PVC piping with a 1-inch PVC spigot outside diameter and a 3/4-inch PVC socket inside diameter.

Key Features

• Female HRM 100 buttress-thread swivel connection
• Combination PVC transition fitting
• 1 in. PVC spigot OD
• 3/4 in. PVC socket ID
• Designed for compatible HRM 100 manifold assemblies

Technical Specifications

• Model: HRM-100-US-1X
• Manifold Connection: Female buttress-thread swivel
• PVC Spigot: 1 in. OD
• PVC Socket: 3/4 in. ID
• Maximum Working Pressure: 200-250 PSI at 73°F, as listed for the HRM 100 system

Compatibility & Installation Notes

Use with compatible Hydro-Rain HRM 100 manifold components and verify the required PVC connection style before installation. Follow appropriate PVC preparation and solvent-cement practices on the PVC side where applicable.

Frequently Asked Questions

What PVC sizes does this adapter provide?
It is listed with a 1-inch PVC spigot OD and a 3/4-inch PVC socket ID.

Why Buy Hydro-Rain HRM-100-US-1X from Big Frog Supply?

The HRM-100-US-1X provides a swivel PVC transition for connecting a compatible HRM 100 manifold assembly to standard irrigation piping.
