Brand: Intermatic | Manufacturer Part Number: AG3000 | Big Frog Supply SKU: AG3000
Product Overview

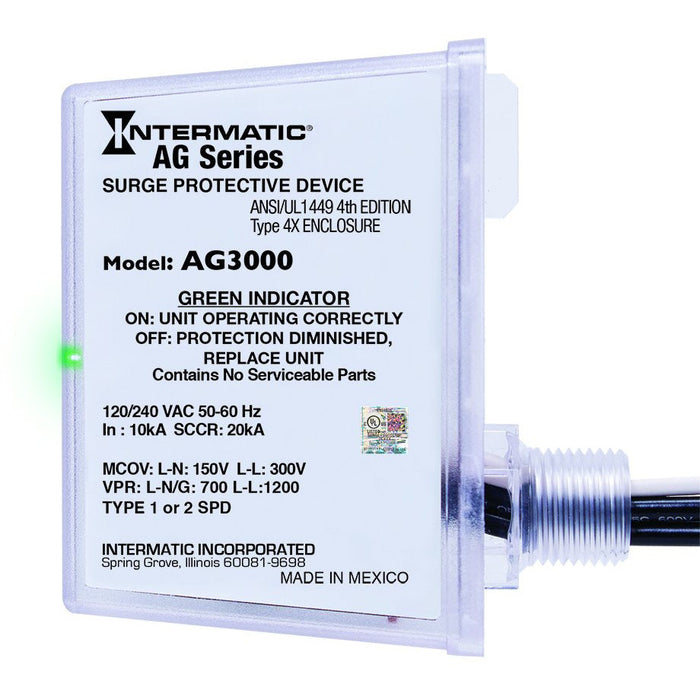

The Intermatic AG3000 is a hard-wired surge protective device designed for 120/240 VAC single-phase HVAC equipment, distribution panels, and service-entrance applications. It can be installed as a Type 1 or Type 2 surge protector in an approved electrical system and provides three modes of protection across line-to-neutral and line-to-line connections. The device uses TPMOV surge protection technology and is rated for a maximum surge current of 50 kA per phase.
Two status indicators make the protection condition easier to check during routine service. A green light indicates normal operation, while a red indication means protection has diminished and the unit should be replaced. The UV-resistant, watertight Type 4X plastic enclosure supports properly installed indoor or outdoor applications. The AG3000 is a protective component only; it cannot eliminate every possible electrical event and must be installed with the correct conductor routing, overcurrent protection, grounding, and equipment connections.
Key Features
- Type 1 or Type 2 hard-wired surge protective device
- 120/240 VAC single-phase operation
- Three protection modes: L1-N, L2-N, and L1-L2
- 50 kA maximum surge current rating per phase
- TPMOV surge protection technology
- Green and red status indicators
- UV-resistant Type 4X plastic enclosure
- ANSI/UL 1449 5th Edition certification
Common Uses
- HVAC condenser and heat-pump protection
- Residential distribution panels
- Service-entrance surge protection
- Outdoor electrical equipment within approved installation requirements
Technical Specifications
-
Voltage: 120/240 VAC, single phase
-
Surge protection type: Type 1 or Type 2
-
Maximum surge current: 50 kA per phase
-
Nominal discharge current: 20 kA
-
Short-circuit current rating: 100 kA
-
Enclosure: Type 4X plastic
-
Wiring: Wire leads
Dimensions
-
Height: 3.875 inches
-
Width: 1.625 inches
-
Depth: 4.188 inches

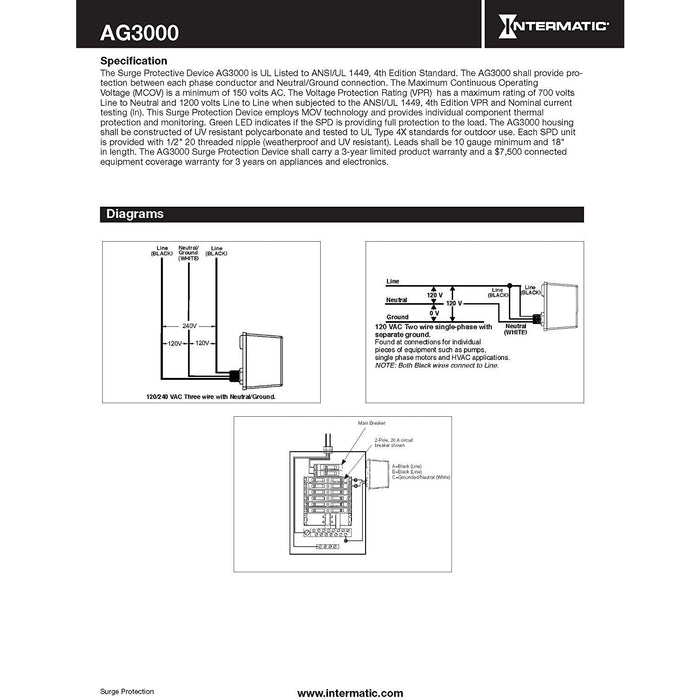

Installation Notes
Installation requires work at line voltage and should be performed by a qualified electrician. Disconnect and verify power is off, follow the Intermatic wiring instructions, keep conductors as short and direct as permitted, and confirm the electrical system, grounding, and installation location are compatible with the device.
Frequently Asked Questions
Can the AG3000 be installed outdoors?
Yes, when installed according to Intermatic instructions. It uses a UV-resistant Type 4X enclosure.
What do the indicator lights mean?
Green indicates normal protection. A red indication means protection has diminished and the device should be replaced.
Does it protect both legs of a 120/240-volt system?
Yes. It provides L1-N, L2-N, and L1-L2 protection modes.
Why Buy This Product from Big Frog Supply?
The AG3000 is a model-specific surge protector whose voltage, protection type, current rating, and enclosure classification all matter. Big Frog Supply presents those verified details clearly so customers and installers can confirm the correct Intermatic device before ordering.
Modes of Protection 3 (L1-N, L2-N, L1-L2)
Surge Protection Type 1, 2
Enclosure Type Indoor/outdoor type 4X
Surge Protection Technology TPMOV®
Voltage 120/240 VAC Single-Phase
Wiring Option Wire leads
Warranty Period 3-Year limited
Maximum Surge Current Rating Per Phase 50 kA
CAProp65Message Please see the Warning @ www.P65Warnings.ca.gov
Connected Equipment Warranty Period 3-Year limited
Country Of Origin Mexico
Maximum Continuous Operating Voltage (L1-N/G) 150
Maximum Continuous Operating Voltage (L-G) 150
Maximum Continuous Operating Voltage (L-L) 300
Nominal Discharge Current 20 kA
Phase Single
Short Circuit Current Rating 100 kA
Surge Protection LED Indicator Green
UL Standard ANSI/UL 1449 4th Edition
Voltage Protection Rating (L1-N/G) 700
Voltage Protection Rating (L-L) 1200
Wire Size Max #10 AWG, Tinned Copper
Operating Temperature Max (°C) 70
Operating Temperature Max (°F) 158
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40
