Brand: Intermatic | Manufacturer Part Number: E1010 | Big Frog Supply SKU: E1010
Product Overview

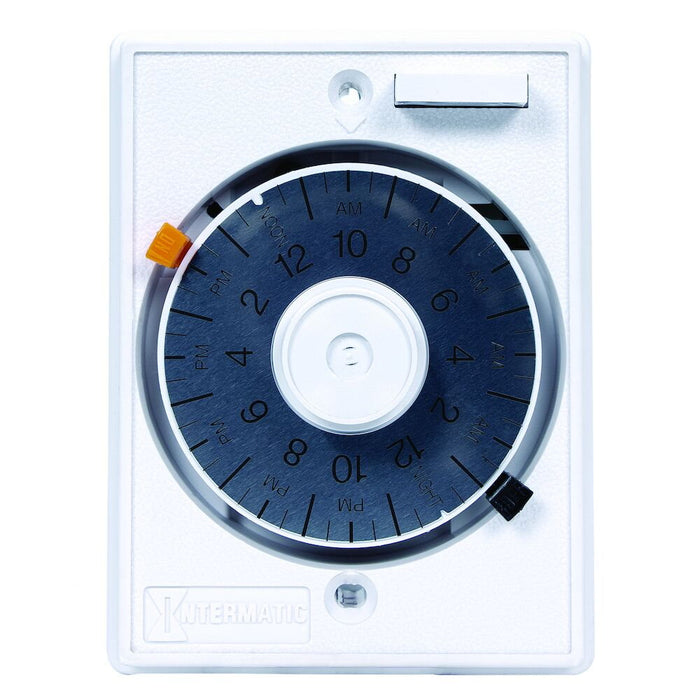

The Intermatic E1010 is a heavy-duty 24-hour mechanical in-wall timer for controlling one compatible 125-volt load on the same schedule each day. A permanently attached ON/OFF tripper provides one daily operating period, making the timer suitable for straightforward applications that do not need several switching events or weekly programming. The analog dial can be set in 30-minute increments, and the included single-gang wall plate creates a finished white installation.
This legacy Intermatic model requires a neutral connection and is intended for hard-wired installation in a compatible single-gang electrical box. Its load ratings support approved lighting and motor applications, including incandescent, fluorescent, and selected CFL loads. Because the E1010 is a mechanical control, it does not require batteries or a digital display. The connected equipment, wall box, wiring, and installation environment must still match the timer’s ratings.
Key Features
- 24-hour analog/mechanical in-wall timer
- One permanently attached daily ON/OFF tripper
- 30-minute minimum switching interval
- Single-gang white wall plate included
- Neutral connection required
- No batteries or digital programming required
Common Uses
- Indoor lighting schedules
- Compatible fluorescent and incandescent loads
- Approved motor loads
- Daily ventilation or equipment control within ratings
Technical Specifications
-
Input voltage: 125 VAC, 60 Hz
-
Mechanism: Analog/mechanical
-
Operation mode: 24 hour
-
Daily operations: One ON/OFF period
-
Minimum interval: 30 minutes
-
Resistive rating: 15 A at 125 VAC
-
Incandescent rating: 1500 W at 125 VAC
-
Motor rating: 12 FLA at 125 VAC
-
Wiring: Single circuit; neutral required
-
Wall plate: Single-gang plate included
-
Color: White
Dimensions
-
Product depth: 1.375 inches
Installation Notes
This timer is a hard-wired electrical control and should be installed by a qualified person with power disconnected. Confirm that a neutral conductor is available in the wall box, verify the connected load against the timer ratings, and follow the Intermatic wiring instructions. Do not use it where a different switching arrangement or outdoor enclosure is required.
Frequently Asked Questions
How many daily ON/OFF periods can the E1010 provide?
It provides one daily ON/OFF operating period using the permanently attached tripper.
Does this timer require a neutral wire?
Yes. Intermatic identifies a neutral connection as required.
Is a wall plate included?
Yes. A white single-gang wall plate is included.
Why Buy This Product from Big Frog Supply?
The E1010 is suited to customers replacing or matching a simple heavy-duty mechanical in-wall timer with one daily operating period. Big Frog Supply clearly identifies the permanent tripper, neutral requirement, voltage, interval, and included plate so it is not confused with Intermatic’s electronic or multi-event timers.
Color: White
Maximum ON/OFF Operations: 1
Resistive: 15 A, 125 VAC, 60 Hz
Minimum ON/OFF Times: 30 min
Mechanism Type: Analog/Mechanical
Warranty Period: 1-Year limited
Category: Mechanical In-Wall Timers Web
Incandescent Single Gang Load Ratings Ranges: 1500 W, 125 VAC, 60 Hz
Motor (Three-Phase): 12 FLA, 125 VAC, 60 Hz
Resistive Load Ratings Ranges: 15 A, 125 VAC, 60 Hz
Operating Temperature Max (°F): 77
Operating Temperature Min (°F): -4
Input Voltage Range(s): 125 VAC, 60 Hz
Operation Mode: 24 hour
Wiring Configurations: Single
Wall Plate Configurations: Single-Gang
Neutral Connection Required: Yes
Application Compatibilities: CFL, Fluorescent, Incandescent
Incandescent Load Ratings (Single-Gang): 1500 W, 125 VAC, 60 Hz
Includes Wall Plate: Yes
Motor Three Phase Ranges: 12 FLA @ 125 VAC, 60 Hz
