Brand: Intermatic | Manufacturer Part Number: HB880R | Big Frog Supply SKU: HB880R
Product Overview

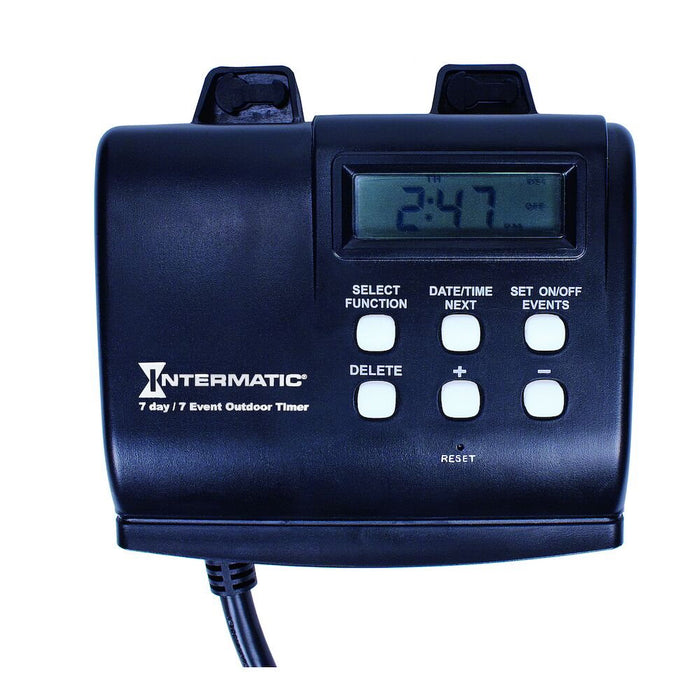

The Intermatic HB880R is a heavy-duty 7-day outdoor digital plug-in timer with two grounded receptacles and a 24-inch grounded cord. It provides 14 programmable events—seven ON and seven OFF—so connected lighting or other approved loads can follow different schedules throughout the week. An astronomical clock can adjust operation around local dusk and dawn, while automatic Daylight Saving Time adjustment reduces seasonal schedule maintenance.
A random mode varies switching times to help create a lived-in appearance when controlling outdoor or security lighting. The included replaceable AA battery preserves time and programming during a power interruption. The weatherproof black enclosure is intended for properly positioned outdoor use, but the timer must still be connected to a suitable grounded receptacle and installed according to Intermatic’s orientation and exposure instructions. Both outlets follow the same programmed schedule.
Key Features
- 7-day digital plug-in timer
- 14 programmable events
- Astronomical dusk/dawn scheduling
- Automatic Daylight Saving Time adjustment
- Random mode
- Two grounded receptacles
- 24-inch grounded cord and plug
- Replaceable AA battery backup included
- Outdoor weatherproof construction
Common Uses
- Outdoor and landscape lighting
- Holiday and seasonal decorations
- Security and occupancy-simulation lighting
- Compatible landscape water-control equipment
Technical Specifications
-
Input voltage: 120 VAC, 60 Hz
-
Schedule: 7 day
-
Total events: 14
-
Receptacles: Two grounded 5-15 outlets
-
Resistive rating: 15 A at 120 VAC
-
Inductive rating: 8.3 A at 120 VAC
-
Electronic ballast: 500 VA at 120 VAC
-
Motor rating: 1/2 HP at 120 VAC
-
Incandescent/tungsten: 1000 W at 120 VAC
-
Battery: Replaceable AA battery included
-
Color: Black
Dimensions
-
Height: 5-3/8 inches
-
Width: 5 inches
-
Depth: 1-7/8 inches
Installation Notes
Connect the timer only to a properly grounded receptacle and keep all connected loads within the listed ratings. Position the enclosure and cord according to Intermatic instructions so water does not enter the receptacle area. Do not place the timer in standing water or use damaged plugs, cords, covers, or outlets.
Frequently Asked Questions
Can the two outlets use different schedules?
No. Both receptacles follow the timer’s programmed switching schedule.
Does the timer support dusk and dawn operation?
Yes. It includes an astronomical clock for dusk/dawn scheduling.
What battery does it use?
A replaceable AA battery is included for backup.
Why Buy This Product from Big Frog Supply?
The HB880R is a useful choice when two outdoor receptacles need the same weekly or astronomical schedule. Big Frog Supply clearly identifies the event count, cord length, outlet arrangement, battery type, and load ratings so it is not confused with a simpler mechanical plug-in timer.
Backup Type Battery Color Black
Input Voltage Range(s) 120 VAC, 60 Hz Maximum ON/OFF Operations 14
Mechanism Type Digital/Electrical Operation Mode 7-day
Resistive 15 A, 120 VAC, 60 Hz Usage Environments Outdoor
Electronic Ballast 500 VA, 120 VAC, 60 Hz Operation Features Astronomic
Plug Configurations 5-15 Number of Plugs 2
Warranty Period 1-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Battery Type AA Incandescent Load Ratings 1000 W, 120 VAC, 60 Hz
Inductive 8.3 A, 120 VAC, 60 Hz Motor (Three-Phase) 1/2 HP, 120 VAC, 60 Hz
Tungsten (NO) 1000 W, 120 VAC, 60 Hz Product Depth (in) 1 7/8
Product Depth (mm) 48 Product Height (in) 5 3/8
Product Height (mm) 137 Product Width (in) 5
Product Width (mm) 129 Unit Carton Height (in) 7
Unit Carton Length (in) 5.5 Unit Carton Weight (lb) 0.948
Unit Carton Width (in) 3
