Brand: Intermatic | Manufacturer Part Number: T104P | Big Frog Supply SKU: T104P
Product Overview

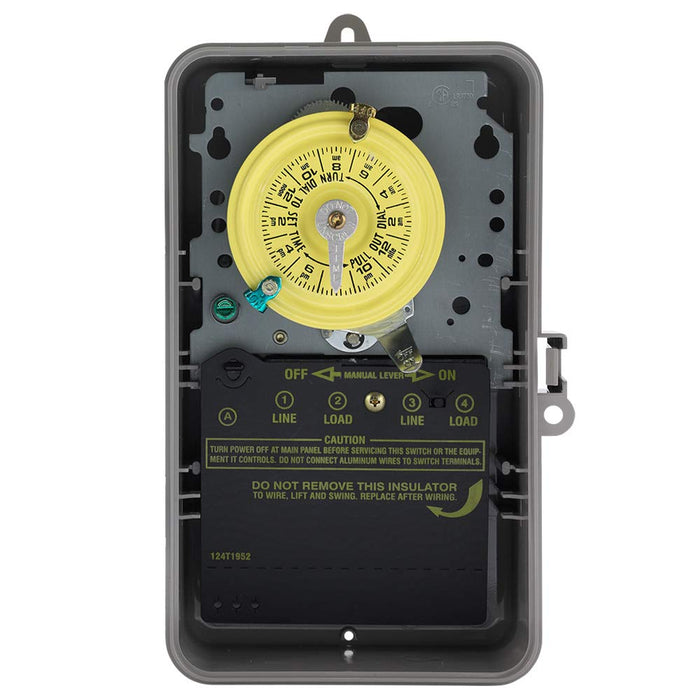

The Intermatic T104P is a complete 24-hour mechanical time switch with a 208–277 VAC DPST mechanism housed in a gray indoor/outdoor Type 3R plastic enclosure. It controls approved two-pole loads on a repeating daily schedule and is commonly used for pumps, motors, lighting, heaters, and other equipment within the timer’s electrical ratings. The noncorroding plastic enclosure is useful in properly installed outdoor and damp-location applications, while the mechanical dial provides straightforward scheduling without batteries or digital programming.
Key Features
- Complete 208–277 VAC mechanical timer assembly
- Double-pole, single-throw switching
- 24-hour repeating schedule
- Up to 12 ON and 12 OFF operations per day
- One ON and one OFF tripper included
- Manual override

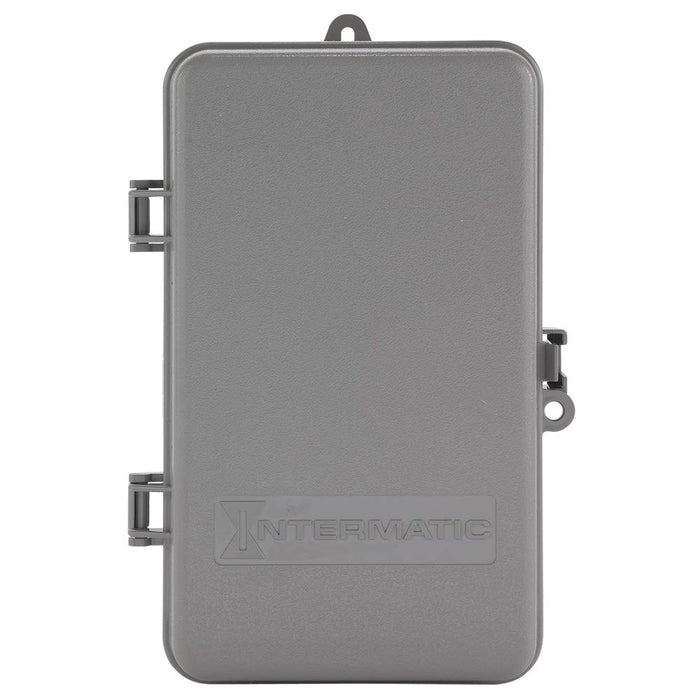

- Gray indoor/outdoor Type 3R plastic enclosure
Common Uses
- Indoor and outdoor lighting control
- Pump and motor scheduling
- Electric heater control within listed ratings
- General two-pole equipment scheduling
Technical Specifications
-
Input voltage: 208–277 VAC, 60 Hz
-
Switch type: DPST
-
Circuits: Two
-
Inductive rating: 40 A at 120–277 VAC
-
Motor rating: 2 HP at 120 VAC; 5 HP at 240 VAC
-
Electronic ballast/LED rating: 16 A at 120/277 VAC
-
Minimum interval: 1 hour
-
Trippers included: One ON and one OFF
-
Enclosure: Gray indoor/outdoor Type 3R plastic
Dimensions
-
Height: 10 inches
-
Width: 6.5 inches
-
Depth: 4 inches
Installation Notes
Type 3R performance depends on correct upright mounting, approved conduit fittings, closed unused openings, and installation according to the manufacturer instructions. Installation involves hazardous line voltage and should be performed by a qualified person with power disconnected and the connected load verified against the timer ratings.
Frequently Asked Questions
Is the T104P enclosure plastic or metal?
The T104P includes a gray Type 3R plastic enclosure.
What switching arrangement does it use?
It uses a 208–277 VAC DPST mechanism for compatible two-pole loads.
Are ON and OFF trippers included?
Yes. One ON and one OFF tripper are included.
Why Buy This Product from Big Frog Supply?
The T104P is the complete outdoor plastic-enclosure option for customers who need a 208–277-volt DPST timer. Big Frog Supply clearly distinguishes it from the indoor metal T104, mechanism-only T104M, and outdoor metal T104R versions.
Input Voltage Range(s) 208-277 VAC, 60 Hz
Maximum OnOff Operations 12
Number Of Circuits 1
Operation Mode 24 hour
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 347 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz
Switch Type DPST
Electronic Ballast 16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC
Enclosure Type Indoor/outdoor type 3R plastic
Minimum ON/OFF Times 1 hour Maximum Power Consumption (W) 3 W
Wiring Option Terminals Resistive Load Ratings Ranges 40 A, 120-480 VAC, 60 Hz
Warranty Period 1-Year limited
Application Compatibilities HID, LED
CAProp65Message Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin Mexico
Electronic Ballast Load Ratings Ranges 16 A, 120-277 VAC
Has Manual Override Yes
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Motor Load Ratings (Ranges) 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Number of Trippers Included 1 ON/1 OFF
Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, 60 Hz
Skipper Wheel Not Included
Timing Interval 1 hr
Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz
Wire Size Max #8 AWG
Wire Size Min #14 AWG
Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130
