Brand: Intermatic | Manufacturer Part Number: PB913N66 | Big Frog Supply SKU: PB913N66
Product Overview

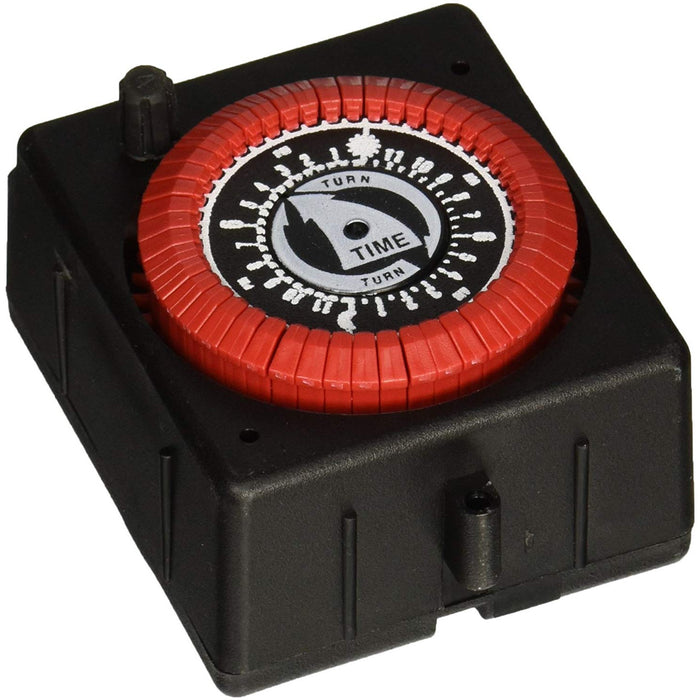

The Intermatic PB913N66 is a 120 VAC mechanical panel-mount timer for automatic control of compatible pumps, cleaners, motors, and other approved loads. Its captive-tripper dial provides repeatable scheduling without loose ON and OFF tabs. The timer can be mounted flush in a round opening, raised in a rectangular opening, or surface mounted on a compatible base, giving equipment manufacturers and service technicians several approved installation options.
The 24-hour timing cycle uses 30-minute increments and supports operating periods from one hour to 23 hours. The mechanism includes 48 captive trippers and a manual override switch so the connected load can be operated outside the programmed schedule when needed. Quick-connect terminals simplify connection within a properly designed panel. This listing is for the timer mechanism and its integral controls; it is not a complete weatherproof enclosure or finished standalone controller.
Key Features
120 VAC mechanical panel-mount timer
SPST switching for one circuit
48 captive trippers
30-minute timing intervals
One-hour minimum and 23-hour maximum cycle time
Manual override switch
Flush, raised-panel, or surface mounting options
Quick-connect terminals
Common Uses
Pool and spa pumps
Automatic pool cleaners
Compatible motor-control equipment
OEM and replacement panel-timer applications
Technical Specifications
Input voltage: 120 VAC, 60 Hz
Switch type: SPST
Circuits: One
Timing interval: 30 minutes
Minimum cycle: 1 hour
Maximum cycle: 23 hours
Captive trippers: 48
Resistive rating: 20 A at 120–277 VAC
Motor rating: 1 HP / 16 FLA at 120 VAC; 2 HP / 12 FLA at 240 VAC
Tungsten: 1250 W at 125 VAC
Manual override: Yes
Mounting: Flush, panel, or surface
Dimensions
Height: 3.333 inches
Width: 2.813 inches
Depth: 1.953 inches
Installation Notes
Confirm the equipment panel, supply voltage, switching arrangement, load, mounting opening, and terminal connections before installation. Work should be completed by a qualified person with power disconnected. The PB913N66 does not provide an outdoor enclosure by itself.
Frequently Asked Questions
How many trippers are included?
The dial includes 48 captive trippers.
Does the timer have a manual override?
Yes. A manual override switch is included.
Is this a complete enclosed pool controller?
No. It is a panel-mount timer mechanism for integration into compatible equipment.
Why Buy This Product from Big Frog Supply?
The PB913N66 is selected by its 120-volt clock, SPST switching, captive-tripper dial, and mounting arrangement. Big Frog Supply clearly identifies those verified details so the mechanism can be matched to the intended panel before ordering.
Input Voltage Range(s) 120 VAC, 60 Hz
Mounting Options Flush, Panel, Surface
Number Of Circuits 1
Operation Mode 24 hour
Resistive 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz
Switch Type SPST
Wiring Option (4) 1/4" male (2) for load (2) for independent clock motor,
Terminals Resistive Load Ratings Ranges 20 A, 120-277 VAC, 60 Hz
Warranty Period 1-Year limited
Captive Trippers 48
Country Of Origin Mexico
Has Manual Override Yes
Has Override Switch Yes
Maximum Cycle Time 23 hrs
Minimum Cycle Time 1 hr
Motor Load Ratings (Ranges) 1 HP, 16 FLA @ 120 VAC, 60 Hz; 2 HP, 12 FLA @ 240 VAC, 60 Hz
Pilot Duty (NO) 360 VA, 120 VAC, 60 Hz, 360 VA, 208 VAC, 60 Hz, 360 VA, 240 VAC, 60 Hz, 360 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 360 VA, 120-240 VAC, 60 Hz
Timing Interval 30 min
Tungsten (NO) 1250 W, 125 VAC, 60 Hz
