Brand: Intermatic | Manufacturer Part Number: R8815P101C | Big Frog Supply SKU: R8815P101C
Product Overview

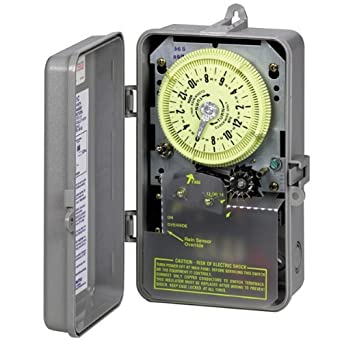

The Intermatic R8815P101C is a complete 24-hour mechanical irrigation timer for compatible 120-volt watering and process-control applications. It combines a DPST timer mechanism with a noncorroding indoor/outdoor Type 3R plastic enclosure and adds a rain-sensor enable/disable switch for use with a compatible separately purchased sensor. The 14-day skipper wheel allows selected watering days to be omitted and supports alternate-day scheduling for water-conscious irrigation programs.
The timer supports up to 44 ON/OFF operations per day with watering intervals from 12 minutes to 20 hours and 45 minutes. An ON/OFF/AUTO control allows watering to be stopped during wet weather or extended during dry periods without changing the tripper positions. Twelve trippers are included for setting multiple operating periods throughout the day.
Key Features
- Complete enclosed 120-volt mechanical irrigation timer
- DPST switching
- Rain-sensor enable/disable switch
- Up to 44 ON/OFF operations per day
- 14-day skipper for selected-day and alternate-day scheduling
- Watering intervals from 12 minutes to 20 hours, 45 minutes
- ON/OFF/AUTO control
- Includes 12 trippers
- Indoor/outdoor Type 3R plastic enclosure
Common Uses
- Residential and light-commercial irrigation control
- Greenhouse misting systems
- Agricultural watering and feeder applications
- Rain-sensor-ready watering schedules
Technical Specifications
-
Input and load voltage: 120 VAC, 60 Hz
-
Clock motor voltage: 125 VAC, 60 Hz
-
Mechanism type: Analog/mechanical
-
Switch type: DPST
-
Maximum ON/OFF operations: 44 per day
-
Minimum ON/OFF time: 12 minutes
-
Maximum ON/OFF time: 20 hours, 45 minutes
-
Motor load rating: 1-1/2 HP at 120 VAC
-
Trippers included: 12
-
Rain sensor: Compatible sensor sold separately
-
Enclosure: Indoor/outdoor Type 3R plastic
Dimensions
-
Height: 10 inches
-
Width: 6.5 inches
-
Depth: 4 inches
Installation Notes
Type 3R performance depends on correct upright mounting, approved conduit fittings, closed unused openings, and installation according to Intermatic instructions. A rain sensor is not included and must be compatible with the timer and installed according to both manufacturers’ instructions. Electrical installation should be completed by a qualified person with power disconnected.
Frequently Asked Questions
Is a rain sensor included?
No. The timer has a rain-sensor enable/disable switch, but the compatible sensor is sold separately.
Can it skip selected watering days?
Yes. The 14-day skipper supports selected-day and alternate-day schedules.
What is the shortest watering interval?
The minimum listed interval is 12 minutes.
Why Buy This Product from Big Frog Supply?
The R8815P101C is useful when a 120-volt irrigation system needs mechanical scheduling, a weather-resistant plastic enclosure, and provisions for a compatible rain sensor. Big Frog Supply clearly identifies the sensor as separately sold and distinguishes this model from Intermatic’s 240-volt R8806 controls.
Input Voltage Range(s) 120 VAC, 60 Hz
MaximumOnOffOperations 44
Mechanism Type Analog/Mechanical S
witch Type DPST
Enclosure Type Indoor/outdoor type 3R plastic
Minimum ON/OFF Times 12 min
Maximum ON/OFF Times 20 hours, 45 minutes
Warranty Period 1-Year limited
Amps Per Pole 30 A
Clock Motor Voltage 125 VAC, 60 Hz
Country Of Origin Mexico
HP 1 1/2
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Load Voltage 120 VAC, 60 Hz
Motor Load Ratings (Ranges) 1 1/2 HP, 120 VAC, 60 Hz
Number of Trippers Included 12
Tripper Actuating Time 12 min
Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40
