Brand: Intermatic | Manufacturer Part Number: PX100 | Big Frog Supply SKU: PX100
Product Overview

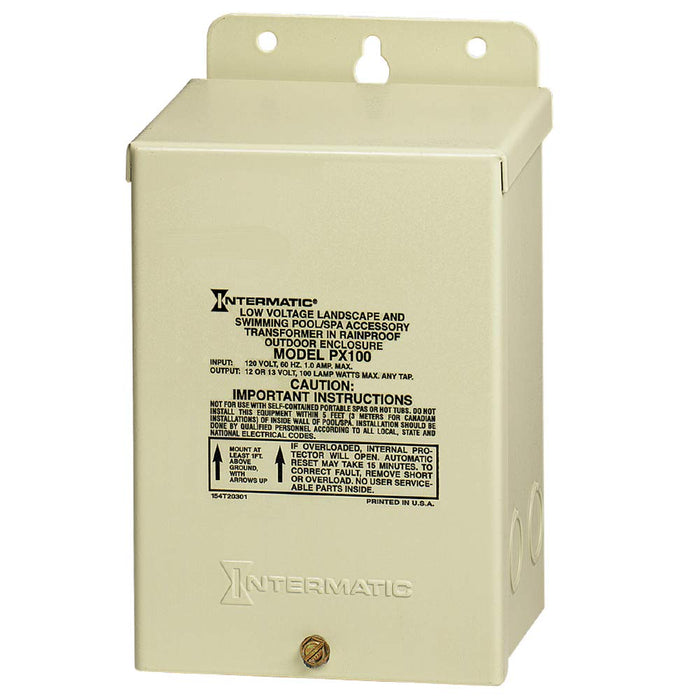

The Intermatic PX100 is a 100-watt safety transformer designed to supply low-voltage power to compatible pool, spa, submersible, fountain, and outdoor landscape-lighting fixtures. It accepts a 120 VAC, 60 Hz input and provides selectable 12, 13, or 14 VAC output connections. The multiple secondary taps allow a qualified installer to select the appropriate output for the connected lighting circuit while accounting for fixture requirements and permitted voltage drop.
A grounded shield separates the primary and secondary windings to support safe low-voltage operation in an approved installation. Built-in circuit protection temporarily disconnects power if an overload occurs and can restore operation after the condition is corrected and the transformer cools. The beige Type 3R steel enclosure supports properly installed indoor or outdoor applications and includes combination knockouts for conduit routing. This transformer does not include a timer, junction box, fixture, or optional ET-NF noise filter.
Key Features
- 100-watt low-voltage safety transformer
- 120 VAC primary input
- Selectable 12, 13, and 14 VAC secondary outputs
- Grounded shield between primary and secondary windings
- Built-in temporary overload protection
- Beige indoor/outdoor Type 3R steel enclosure
- Ten combination 1/2-inch and 3/4-inch knockouts
Common Uses
- Compatible pool and spa lights
- Submersible and fountain lighting
- Low-voltage landscape-lighting fixtures
- Replacement or new safety-transformer installations
Technical Specifications
-
Maximum capacity: 100 W
-
Primary input: 120 VAC, 60 Hz
-
Secondary outputs: 12, 13, or 14 VAC
-
Enclosure: Beige Type 3R steel
-
Knockouts: Ten combination 1/2-inch and 3/4-inch openings
-
Noise filter: Optional ET-NF sold separately
Dimensions
-
Height: 7.25 inches
-
Width: 5.25 inches
-
Depth: 4.5 inches
Compatibility and Installation Notes
Confirm the combined fixture wattage, required operating voltage, conductor length, voltage drop, transformer location, bonding, grounding, conduit, and junction-box requirements before installation. Pool and spa lighting systems are subject to specialized electrical rules and should be installed by a qualified professional. Do not exceed the transformer’s 100-watt capacity.
Frequently Asked Questions
What output voltages are available?
The PX100 provides selectable 12, 13, and 14 VAC secondary connections.
Can it power more than 100 watts of lighting?
No. The total connected load must remain within the 100-watt transformer capacity.
Does it include a timer or junction box?
No. This listing is for the safety transformer and enclosure only.
Why Buy This Product from Big Frog Supply?
The PX100 is the compact 100-watt member of Intermatic’s pool and spa safety-transformer family. Big Frog Supply clearly identifies its selectable outputs, steel Type 3R enclosure, overload protection, dimensions, and separate-accessory requirements so it can be matched accurately to the lighting load.
Enclosure Type 3R Beige metal
Transformer Output Voltage 12 VAC, 13 VAC, 14 VAC
Maximum Power Consumption (W) 100 W Warranty Period 1-Year limited
CAProp65Message Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin U.S.A.
Knockout Dimensions Back (2) combination 1/2" - 3/4"
Knockout Dimensions Bottom (4) combination 1/2" - 3/4"
Knockout Dimensions Left (2) combination 1/2" - 3/4"
Knockout Dimensions Right (2) combination 1/2" - 3/4"
Transformer Input Voltage 1 A, 120 VAC, 60 Hz
Transformer Output Voltage 12, 13, 14 VAC
