Brand: Intermatic | Manufacturer Part Number: PX300 | Big Frog Supply SKU: PX300
Product Overview

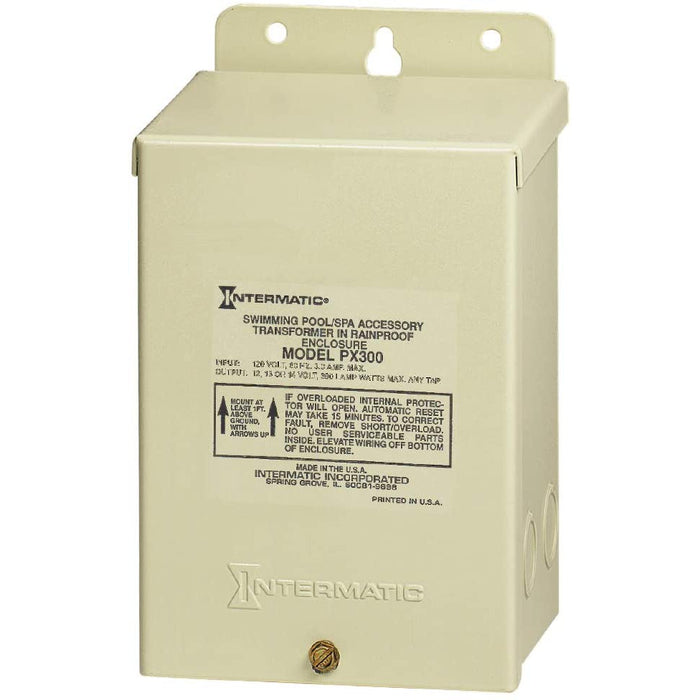

The Intermatic PX300 is a 300-watt safety transformer for compatible pool, spa, underwater, fountain, and outdoor landscape-lighting systems. It accepts 120 VAC, 60 Hz input power and provides selectable 12, 13, or 14 VAC secondary connections. The increased 300-watt capacity supports larger combined lighting loads than the PX100 while retaining the same compact enclosure dimensions.
A grounded shield separates the primary and secondary windings to support safe low-voltage operation in a correctly designed system. Built-in circuit protection temporarily disconnects transformer power during an overload and can restore operation after the fault is corrected and the unit cools. The beige Type 3R steel enclosure supports properly installed indoor or outdoor applications and includes ten combination knockouts for conduit routing. A timer, junction box, fixtures, and optional ET-NF noise filter are not included.
Key Features
- 300-watt pool and spa safety transformer
- 120 VAC primary input
- Selectable 12, 13, and 14 VAC outputs
- Grounded shield between primary and secondary windings
- Temporary built-in overload protection
- Beige Type 3R steel enclosure
- Top and bottom mounting brackets
- Ten combination 1/2-inch and 3/4-inch knockouts
Common Uses
- Multi-fixture pool and spa lighting
- Underwater and fountain fixtures
- Low-voltage landscape-lighting systems
- Replacement of a compatible 300-watt safety transformer
Technical Specifications
-
Maximum capacity: 300 W
-
Primary input: 120 VAC, 60 Hz
-
Secondary outputs: 12, 13, or 14 VAC
-
Enclosure: Beige Type 3R steel
-
Knockouts: Ten combination 1/2-inch and 3/4-inch openings
-
Optional noise filter: ET-NF, sold separately
Dimensions
-
Height: 7.25 inches
-
Width: 5.25 inches
-
Depth: 4.5 inches
Installation Notes
Add the wattage of every connected fixture and confirm the required voltage tap, conductor length, voltage drop, conduit, transformer location, bonding, grounding, and junction-box arrangement. Pool and spa lighting work should be completed by a qualified professional. The total connected load must not exceed 300 watts.
Frequently Asked Questions
Does PX300 provide only 12 volts?
No. It provides selectable 12, 13, and 14 VAC secondary connections.
How does it differ from PX100?
PX300 supports up to 300 watts, while PX100 supports up to 100 watts.
Is the enclosure stainless steel?
No. PX300 uses a beige steel enclosure; PX300S is the stainless-steel version.
Why Buy This Product from Big Frog Supply?
The PX300 is the beige steel 300-watt model for systems that need more capacity than the compact PX100. Big Frog Supply clearly identifies its wattage, selectable outputs, enclosure material, dimensions, and separately sold accessories so it is not confused with PX300S.
Designed to supply 12 volts to pool/spa lights, submersible fixtures and outdoor garden lights
Grounded shield between the primary and secondary windings
Built-in circuit protection
3R Beige metal enclosure with a total of 10 combination 1/2" inch - 3/4" inch knockouts: (2) right side, (2) left side, (2) back and (4) bottom
7 ¼” inches (19.4 cm) (H) x 5 ¼” inches (13.3 cm) (W) x 4 ½” inches (11.4cm) (D)
