Brand: Intermatic | Manufacturer Part Number: R8806P101C | Big Frog Supply SKU: R8806P101C
Product Overview

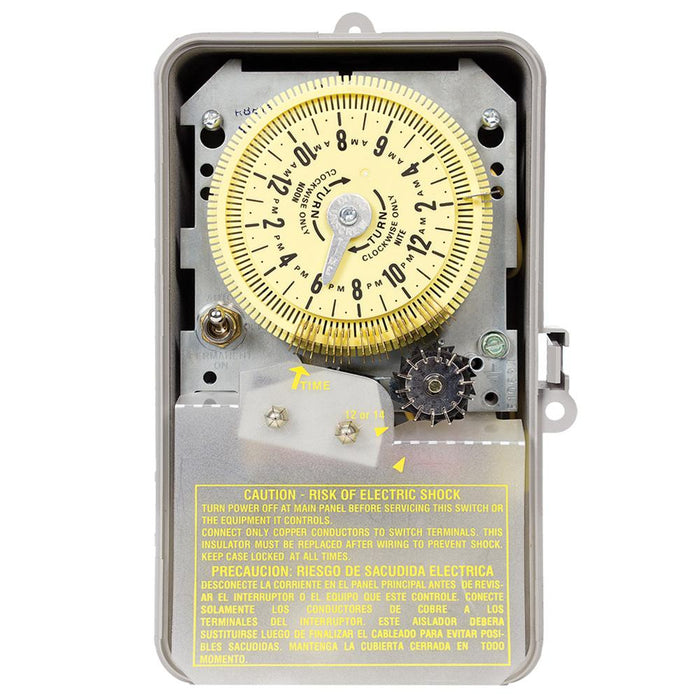

The Intermatic R8806P101C is a complete 24-hour mechanical irrigation timer for compatible 240-volt watering and process-control applications. It combines a DPST timer mechanism with a noncorroding indoor/outdoor Type 3R plastic enclosure, providing a complete wall-mounted control rather than a mechanism-only replacement. The 14-day skipper wheel allows selected watering days to be omitted and supports alternate-day scheduling for applications that need more flexibility than a simple daily timer.
The mechanical dial supports up to 44 ON/OFF operations per day with watering intervals as short as 12 minutes or as long as 20 hours and 45 minutes. An ON/OFF/AUTO control allows watering to be stopped during wet periods or extended during dry conditions without disturbing the tripper settings. Twelve trippers are included for building the required daily schedule.
Key Features
- Complete enclosed mechanical irrigation timer
- 240 VAC, 60 Hz load operation
- DPST switching
- Up to 44 ON/OFF operations per day
- 14-day skipper for selected-day and alternate-day scheduling
- Watering intervals from 12 minutes to 20 hours, 45 minutes
- ON/OFF/AUTO control
- Includes 12 trippers
- Indoor/outdoor Type 3R plastic enclosure
Common Uses
- Landscape irrigation control
- Greenhouse misting systems
- Agricultural watering and feeder applications
- Scheduled 240-volt pump or control loads within listed ratings
Technical Specifications
-
Input and load voltage: 240 VAC, 60 Hz
-
Clock motor voltage: 208/277 VAC, 60 Hz
-
Mechanism type: Analog/mechanical
-
Switch type: DPST
-
Maximum ON/OFF operations: 44 per day
-
Minimum ON/OFF time: 12 minutes
-
Maximum ON/OFF time: 20 hours, 45 minutes
-
Motor load rating: 3 HP at 240 VAC
-
Trippers included: 12
-
Enclosure: Indoor/outdoor Type 3R plastic
Dimensions
-
Height: 10 inches
-
Width: 6.5 inches
-
Depth: 4 inches
Installation Notes
Type 3R performance depends on correct upright mounting, approved conduit fittings, closed unused openings, and installation according to Intermatic instructions. Installation involves hazardous voltage and should be completed by a qualified person after confirming the supply, connected load, wiring, and pump requirements.
Frequently Asked Questions
Does this model include an enclosure?
Yes. The R8806P101C includes an indoor/outdoor Type 3R plastic enclosure.
Can it provide alternate-day watering?
Yes. The 14-day skipper supports alternate-day and selected-day schedules.
How many trippers are included?
The timer includes 12 trippers.
Why Buy This Product from Big Frog Supply?
The R8806P101C is the complete enclosed option for customers who need a 240-volt irrigation timer with short watering intervals and multi-day scheduling. Big Frog Supply clearly separates it from the mechanism-only R8806M101C and identifies the enclosure, voltage, scheduling limits, and included trippers before purchase.
Input Voltage Range(s) 240 VAC, 60 Hz
MaximumOnOffOperations 44
Mechanism Type Analog/Mechanical
Switch Type DPST
Enclosure Type Indoor/outdoor type 3R plastic
Minimum ON/OFF Times 12 min
Maximum ON/OFF Times 20 hours, 45 minutes
Warranty Period 1-Year limited
Amps Per Pole 30 A
Clock Motor Voltage 208/277 VAC, 60 Hz
Country Of Origin Mexico
HP 3
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Load Voltage 240 VAC, 60 Hz
Motor Load Ratings (Ranges) 3 HP @ 240 VAC, 60 Hz
Number of Trippers Included 12
Tripper Actuating Time 12 min
Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40
