Brand: Intermatic | Manufacturer Part Number: IG2240-IMSK | Big Frog Supply SKU: IG2240-IMSK
Product Overview

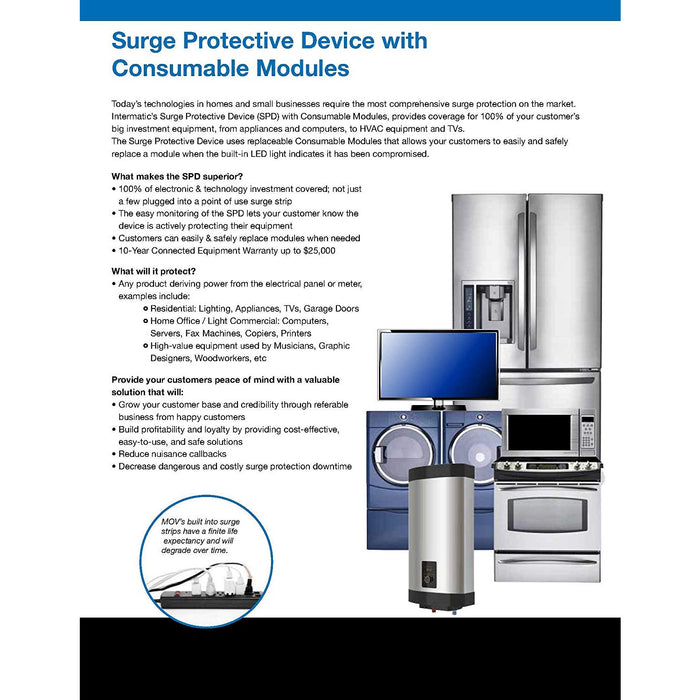

The Intermatic IG2240-IMSK Smart Guard is a modular whole-home surge protective device for 120/240 VAC single-phase electrical systems. It can be installed as a Type 1 or Type 2 SPD in an approved indoor application and provides six modes of protection across line, neutral, and ground connections. The system uses three replaceable IMODULE surge modules, allowing a depleted module to be serviced without replacing the complete base enclosure.
Each module includes power and protection-status indicators for routine inspection. Tamper-resistant module doors are designed to open only as a module is inserted. This IMSK version also includes a module power switch, which allows power to the SPD to be disconnected during approved module replacement procedures. The black Type 1 metal enclosure is for indoor use and must be installed with the correct service configuration, grounding, conductor routing, and overcurrent protection.
Key Features
- Type 1 or Type 2 whole-home surge protective device
- 120/240 VAC single-phase operation
- Six protection modes
- Three replaceable IMODULE surge modules included
- Module power switch included
- LED power and protection-status indicators
- TPMOV surge protection technology
- Tamper-resistant module doors
- Indoor Type 1 metal enclosure
- ANSI/UL 1449 5th Edition certification
Common Uses
- Whole-home electrical surge protection
- Residential service and distribution equipment
- Protection for connected appliances, HVAC equipment, and electronics
- Installations that benefit from field-replaceable surge modules
Technical Specifications
-
Voltage: 120/240 VAC, single phase
-
Surge protection type: Type 1 or Type 2
-
Protection modes: L1-N, L2-N, L1-G, L2-G, N-G, and L1-L2
-
Maximum surge current: 50 kA per phase
-
Nominal discharge current: 10 kA
-
Modules included: Three IMODULE units
-
Module power switch: Yes
-
Enclosure: Indoor Type 1 metal
-
Wiring: Terminals and wire leads
Installation Notes
Installation involves service or distribution-panel voltage and should be completed by a qualified electrician. Disconnect power according to approved procedures, verify the system voltage and phase, follow Intermatic conductor-length and grounding requirements, and use the module switch only as described in the manufacturer instructions. This indoor enclosure is not rated for direct outdoor exposure.
Frequently Asked Questions
Can the surge modules be replaced?
Yes. The IG2240-IMSK includes three field-replaceable IMODULE units.
What is special about the IMSK version?
It includes a module power switch for approved disconnection during module replacement.
Can this model be installed outdoors?
No. It uses an indoor Type 1 metal enclosure.
Why Buy This Product from Big Frog Supply?
The IG2240-IMSK is the switch-equipped modular Smart Guard configuration, so the exact suffix matters. Big Frog Supply clearly identifies the module count, six protection modes, indoor enclosure, current UL edition, and included power switch so it is not confused with another IG2240 version.
Modes of Protection 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2)
Surge Protection Type 1, 2
Enclosure Type Indoor type 1 metalSurge Protection Technology TPMOV®
Voltage 120/240 VAC Single-Phase
Wiring Option Terminals, Wire leads
Warranty Period 10-Year limited (Base) 3-Year limited (Modules)
Maximum Surge Current Rating Per Phase 50 kA
CAProp65Message Please see the Warning @ www.P65Warnings.ca.gov
Connected Equipment Warranty Period 10-Year limited
Country Of Origin Mexico
Has Module Power Switch Yes
Maximum Continuous Operating Voltage (L-G) 300
Maximum Continuous Operating Voltage (L-L) 300
Maximum Continuous Operating Voltage (L-N) 150
Maximum Continuous Operating Voltage (N-G) 150
Nominal Discharge Current 10 kA
Phase Single
Short Circuit Current Rating 10 kA
Surge Protection LED Indicator Blue, Green
UL Standard Ansi/UL 1449 3rd Edition
Voltage Protection Rating (L-G) 1500
Voltage Protection Rating (L-L) 1500
Voltage Protection Rating (L-N) 800
Voltage Protection Rating (N-G) 700
Wire Size Max #10 AWG, Tinned Copper
Operating Temperature Max (°C) 85
Operating Temperature Max (°F) 185
Operating Temperature Min (°C) -35
Operating Temperature Min (°F) -31
