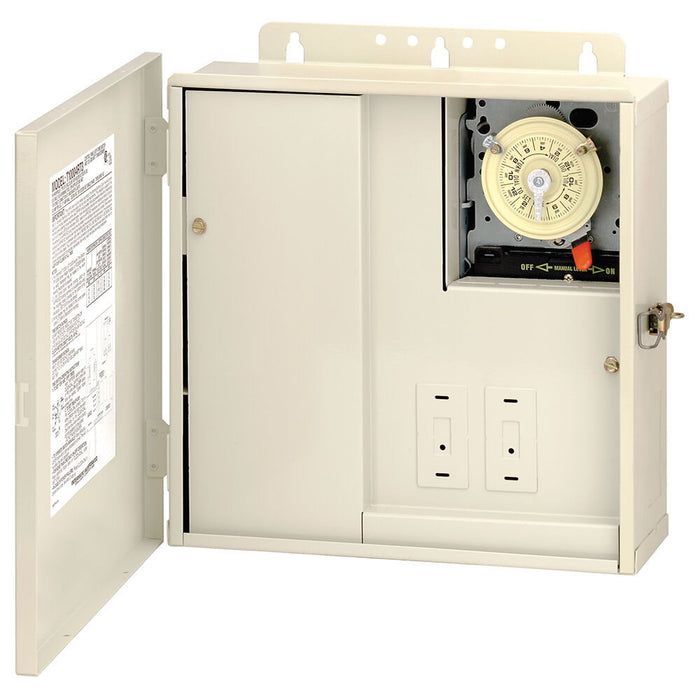

Intermatic T10004RT1 Control Panel with 100 W Transformer and T104M Mechanism
Brand: Intermatic | SKU: T10004RT1
Product Overview
The Intermatic T10004RT1 is a mechanical pool and spa control panel that combines a T104M time-switch mechanism with a built-in 100-watt low-voltage transformer. It is designed to consolidate timer control and low-voltage power in one outdoor-rated enclosure for pool, spa, pump, landscape-lighting, and underwater-lighting applications.
Key Features
- Includes one T104M mechanical time-switch mechanism.
- Built-in 100 W transformer for low-voltage equipment.
- Type 3R metal enclosure for indoor or outdoor installations.
- Provides space for additional compatible Intermatic mechanisms or wiring devices.
Common Uses
- Pool and spa equipment control
- Pump and motor control
- Landscape and underwater lighting control
- Distribution/control-panel applications
Technical Specifications
-
Mechanism Supply: 240 VAC, 60 Hz
-
Transformer Rating: 100 W
-
Transformer Input: 1 A, 120 VAC, 60 Hz
-
Transformer Output: 12, 13, or 14 VAC
-
Switch Type: DPST
-
Enclosure: Type 3R metal
Dimensions
-
Height: 12.875 in.
-
Width: 12.875 in.
-
Depth: 4.75 in.
Compatibility & Installation Notes
Install in accordance with applicable electrical codes and Intermatic instructions. The built-in transformer provides 12/13/14 VAC taps for compatible low-voltage equipment. Additional mechanisms or wiring devices must be compatible with the enclosure and installed according to Intermatic requirements.
Frequently Asked Questions
Does the T10004RT1 include a timer mechanism?
Yes. It includes one Intermatic T104M mechanical mechanism.
What transformer is built into this panel?
It includes a 100 W transformer with 12, 13, and 14 VAC output taps.
Why Buy the Intermatic T10004RT1 from Big Frog Supply?
The T10004RT1 combines mechanical equipment control and low-voltage transformer power in one Intermatic enclosure, making it useful when a pool, spa, pump, or lighting installation needs centralized control.
Input Voltage Range(s) 120-240 VAC, 60 Hz single-phase Number Of Circuits 1
Resistive 30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 30 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 30 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (1) 7/8" - 1 1/8", (1) 1 1/8" - 1 3/8" Knockout Dimensions Bottom (5) 7/8" - 1 7/8", (2) 7/8", (2) 1 1/8" - 1 3/8"
Knockout Dimensions Left (1) 7/8" - 1 1/8" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Mechanism Supply Voltage 240 VAC, 60 Hz Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz
Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz
Power Center Ratings 62 A per leg, 109 A Max , 208 VAC, 60 Hz, 62 A per leg, 109 A Max , 240 VAC, 60 Hz, Single Phase, 62 A per leg, 109 A Max, 120 VAC, 60 Hz Power Center Ratings Display 62 A per leg, 109 A MAX, 120-240 VAC,60 Hz, Single-Phase
Transformer Input Voltage 1 A, 120 VAC, 60 Hz Transformer Output Voltage 12, 13, 14 VAC
Tungsten (NO) 30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz Tungsten Range(s) 30 A, 120-240 VAC, 60 Hz
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 4.75 Product Depth (mm) 120.7
Product Height (in) 12.875 Product Height (mm) 327
Product Width (in) 12.875 Product Width (mm) 327
Unit Carton Height (in) 5.371 Unit Carton Length (in) 14.001
Unit Carton Weight (lb) 16.615 Unit Carton Width (in) 13.751
