Brand: Intermatic | Manufacturer Part Number: T101M | Big Frog Supply SKU: T101M

Product Overview

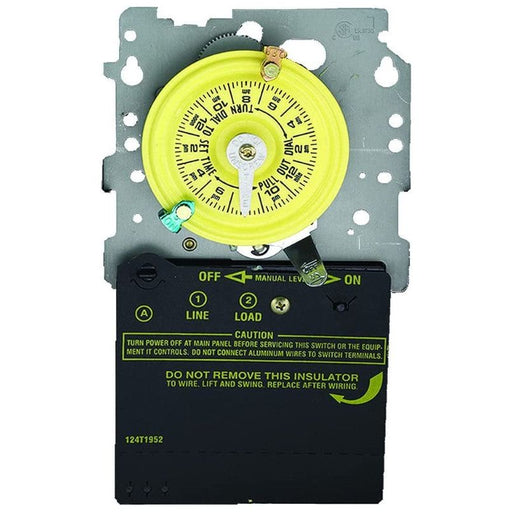

The Intermatic T101M is a mechanism-only 24-hour mechanical time switch for controlling one 120-volt load. Its SPST switching arrangement and heavy-duty contact ratings make it suitable for approved lighting, motor, pump, heater, and general scheduling applications where a matching Intermatic enclosure is already installed or will be supplied separately. The mechanical dial repeats the same schedule each day and can be operated manually when temporary control is needed.

Key Features

• 24-hour mechanical time-switch mechanism
• 120 VAC, 60 Hz input
• Single-pole, single-throw switching
• Up to 12 ON and 12 OFF operations per day
• One ON and one OFF tripper included
• Manual override
• Mechanism only; enclosure not included

Common Uses

• Indoor and outdoor lighting control when installed in a suitable enclosure
• Pump and motor scheduling
• Electric heater control within listed ratings
• Replacement mechanism for a compatible Intermatic timer

Technical Specifications

• Input voltage: 120 VAC, 60 Hz
• Switch type: SPST
• Circuits: One
• Inductive and resistive rating: 40 A at 120 VAC
• Motor rating: 2 HP at 120 VAC
• Electronic ballast/LED rating: 16 A at 120 VAC
• Minimum interval: 1 hour
• Trippers included: One ON and one OFF
• Enclosure: Not included

Compatibility and Installation Notes

The T101M can be installed in many compatible Intermatic enclosures, but the enclosure, voltage, wiring, and connected load must be verified for the application. Installation involves hazardous line voltage and should be completed by a qualified person with power disconnected.

Frequently Asked Questions

Does the T101M include an enclosure?

No. It is the mechanism only.

What type of switch does it use?

The T101M uses an SPST switch to control one 120-volt load.

Are trippers included?

Yes. One ON tripper and one OFF tripper are included.

Why Buy This Product from Big Frog Supply?

The T101M is the correct choice when a compatible enclosure remains usable and only the 120-volt SPST mechanism needs replacement. Big Frog Supply separates the mechanism-only configuration from complete T101 timer assemblies and clearly states the load ratings and included trippers.
