Brand: Intermatic | Manufacturer Part Number: T21004R | Big Frog Supply SKU: T21004R
Product Overview

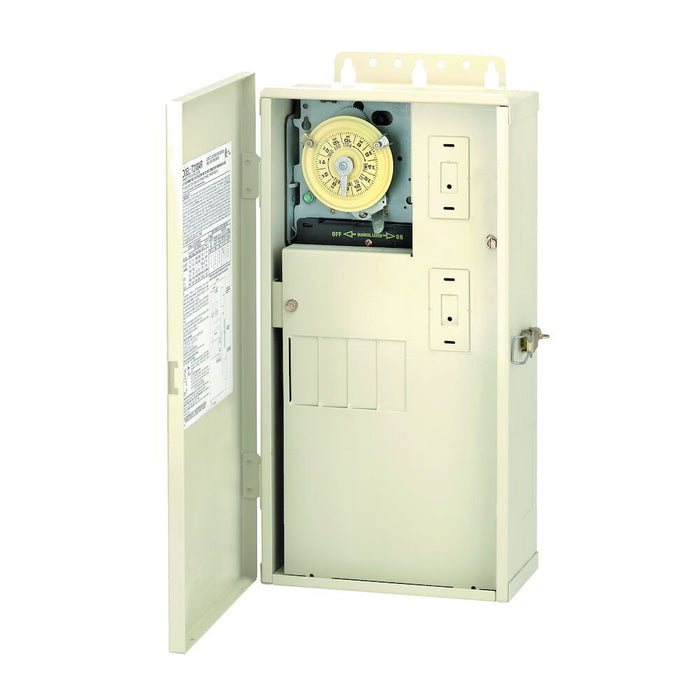

The Intermatic T21004R is a 60-amp single-phase outdoor load center with four breaker spaces and an installed T104M mechanical timer mechanism. It combines power distribution and scheduled two-pole load control in one beige Type 3R metal cabinet, making it useful for pool, spa, pump, motor, and other approved equipment installations. The control can serve as a load center and timer system, while the dead front also provides knockouts for compatible switches or GFCI devices when the installation requires them.
Key Features
- 60 A single-phase load-center rating
- Four breaker spaces
- Installed T104M DPST mechanical timer mechanism
- Beige outdoor Type 3R metal enclosure
- Dead-front knockouts for switches or GFCI devices
- Accepts compatible interchangeable breaker types
- Additional wiring devices can be installed using separately sold standoffs
Common Uses
- Pool and spa equipment distribution
- Pump and motor control
- Water-circulation systems
- Combined load-center and timed-control installations
Technical Specifications
-
Load-center rating: 60 A, 120/240 VAC or 120/208 VAC, single phase
-
Breaker spaces: Four
-
Installed mechanism: T104M
-
Mechanism supply voltage: 240 VAC, 60 Hz
-
Switch type: DPST
-
Inductive/resistive rating: 40 A at 120–240 VAC
-
Motor rating: 2 HP at 120 VAC; 5 HP at 240 VAC
-
Enclosure: Beige Type 3R metal
-
Receptacle/switch knockouts: Three
Dimensions
-
Height: 16.875 inches
-
Width: 8.875 inches
-
Depth: 4.75 inches
Compatibility and Installation Notes
The load center accepts selected Intermatic mechanisms and compatible breaker types, but the complete breaker, wiring-device, service, and branch-circuit design must be confirmed for the installation. Breakers and optional standoffs are not assumed to be included unless specifically listed. Installation involves service and branch-circuit voltages and should be completed by a qualified electrician in accordance with Intermatic instructions and applicable codes.
Frequently Asked Questions
Is a timer mechanism included?
Yes. The T21004R includes a T104M mechanical timer mechanism.
How many breaker spaces are available?
The load center provides four breaker spaces.
Is the enclosure suitable for outdoor use?
Yes. It is a beige Type 3R metal enclosure when properly installed.
Why Buy This Product from Big Frog Supply?
The T21004R is intended for customers who need both a 60-amp distribution center and a scheduled T104M control in one cabinet. Big Frog Supply clearly identifies the installed mechanism, breaker-space count, service rating, enclosure material, and optional-accessory limitations before purchase.
Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 1
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (1) combination 1/2" - 3/4" and (1) 3/4" - 1" Knockout Dimensions Bottom (5) combination 1/2" - 3/4" and (3) combination 3/4" - 1"
Knockout Dimensions Left (1) combination 1/2" - 3/4" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Load Center Rating Display 60 A, 120/240 VAC or 120/208 VAC, Single Phase Load Center Ratings 60 A, 120 VAC, 60 Hz, 60 A, 208 VAC, 60 Hz, 60 A, 240 VAC, 60 Hz, Single Phase
Mechanism Supply Voltage 240 VAC, 60 Hz Mechanisms T104M
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 16.875
Product Height (mm) 428.6 Product Width (in) 8.875
Product Width (mm) 225.4 Unit Carton Height (in) 6.001
Unit Carton Length (in) 17.751 Unit Carton Weight (lb) 12.225
Unit Carton Width (in) 10
