Brand: Intermatic | Manufacturer Part Number: T30004R | Big Frog Supply SKU: T30004R
Product Overview

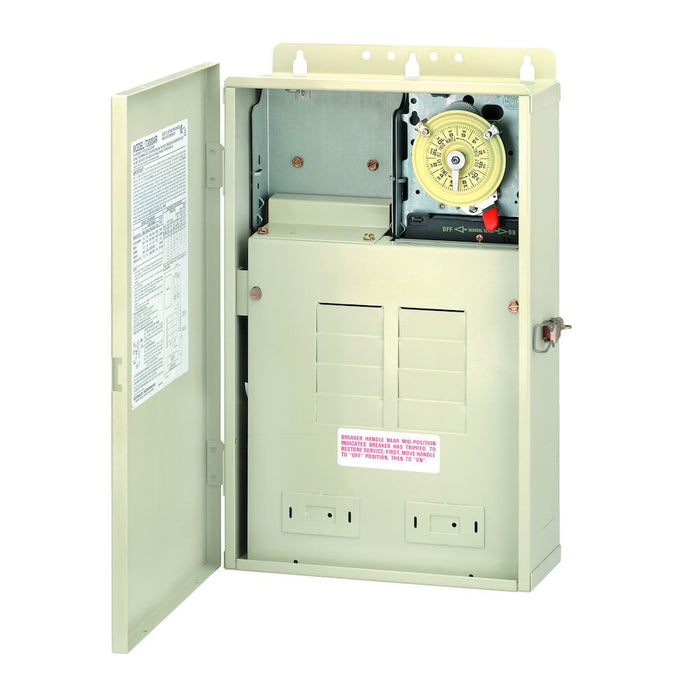

The Intermatic T30004R is a 100-amp single-phase outdoor load center with eight breaker spaces and one installed T104M mechanical timer mechanism. It combines power distribution and scheduled two-pole load control in a beige Type 3R metal cabinet, making it useful for pool, spa, pump, motor, and other approved equipment installations. The larger eight-space layout provides more distribution capacity than the T21004R, while the dead front includes knockouts for compatible switches or GFCI devices.
Key Features
- 100 A single-phase load-center rating
- Eight breaker spaces
- One installed T104M DPST mechanical timer mechanism
- Beige outdoor Type 3R metal enclosure
- Dead-front knockouts for switches or GFCI devices
- Accepts compatible hard-wired T100 mechanical and PE digital timers
- Optional wiring devices can be installed using separately sold standoffs
Common Uses
- Pool and spa equipment distribution
- Pump and motor control
- Water-circulation systems
- Combined load-center and scheduled-control installations
Technical Specifications
-
Load-center rating: 100 A, 120–240 VAC, single phase, 60 Hz
-
Breaker spaces: Eight
-
Installed mechanism: One T104M
-
Mechanism supply voltage: 240 VAC, 60 Hz
-
Switch type: DPST
-
Inductive/resistive rating: 40 A at 120–240 VAC
-
Motor rating: 2 HP at 120 VAC; 5 HP at 240 VAC
-
Enclosure: Beige Type 3R metal
-
Receptacle/switch knockouts: Three
Dimensions
-
Height: 16.875 inches
-
Width: 10.875 inches
-
Depth: 4.75 inches
Compatibility and Installation Notes
The load center accepts selected Intermatic mechanisms and compatible breaker types, but the complete breaker, wiring-device, service, and branch-circuit design must be confirmed for the installation. Breakers and optional standoffs are not assumed to be included unless specifically listed. Installation involves service and branch-circuit voltages and should be completed by a qualified electrician following Intermatic instructions and applicable codes.
Frequently Asked Questions
Is a timer mechanism included?
Yes. The T30004R includes one T104M mechanical timer mechanism.
How many breaker spaces are available?
The load center provides eight breaker spaces.
How does it differ from T21004R?
The T30004R is rated for 100 A and has eight breaker spaces; the T21004R is rated for 60 A and has four spaces.
Why Buy This Product from Big Frog Supply?
The T30004R is suited to projects that need a larger 100-amp distribution center and one scheduled T104M control in the same cabinet. Big Frog Supply clearly identifies the installed mechanism, breaker-space count, service rating, enclosure material, and optional-accessory limitations before purchase.
Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 1
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (5) 1/2" - 3/4" Knockout Dimensions Bottom (4) 1/2" - 3/4", (3) 1/2", (2) 3/4" - 1"
Knockout Dimensions Left (1) 3/4" - 1" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Load Center Rating Display 100 A, 120-240 VAC, Single Phase, 60 Hz Load Center Ratings 100 A, 120 VAC, 60 Hz, 100 A, 208 VAC, 60 Hz, 100 A, 240 VAC, 60 Hz, Single Phase
Mechanism Supply Voltage 240 VAC, 60 Hz Mechanisms (1) T104M
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 16.875
Product Height (mm) 428.6 Product Width (in) 10.875
Product Width (mm) 276.2 Unit Carton Height (in) 5.13
Unit Carton Length (in) 18.5 Unit Carton Weight (lb) 16.366
Unit Carton Width (in) 13.19
