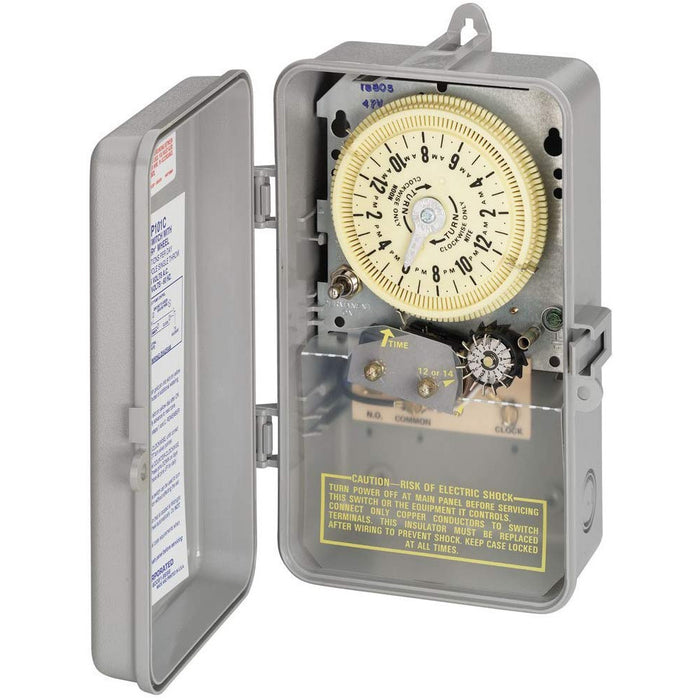

Intermatic T8805P101C 125 V Mechanical Irrigation Time Switch with 14-Day Skipper
Brand: Intermatic | SKU: T8805P | Manufacturer Model: T8805P101C
Product Overview
The Intermatic T8805P101C is a 125-volt analog mechanical sprinkler and irrigation time switch for recurring landscape, greenhouse, and agricultural watering schedules. It supports up to 44 ON/OFF settings per day and uses a 14-day skipper to omit watering on selected days without disturbing the programmed daily cycle.
Key Features
- Up to 44 ON/OFF settings per day.
- Watering intervals from 12 minutes to 20 hours and 45 minutes.
- 14-day skipper for selected-day and every-other-day scheduling.
- ON/OFF/AUTO control for temporary shutdown or extended watering.
- Type 3R plastic indoor/outdoor enclosure.
Common Uses
- Landscape irrigation control
- Greenhouse misting control
- Agricultural watering and feeder applications
Technical Specifications
-
Input Voltage: 125 VAC, 60 Hz
-
Mechanism Type: Analog/mechanical
-
Switch Type: SPST
-
Motor Rating: 1/2 HP at 120 VAC
-
Minimum Interval: 12 minutes
-
Maximum Interval: 20 hours, 45 minutes
-
Trippers Included: 12
Dimensions
-
Height: 10 in.
-
Width: 6.5 in.
-
Depth: 4 in.
Compatibility & Installation Notes
The T8805P101C is a 125 VAC SPST time switch. Match the existing system voltage and load requirements before replacement or installation, and follow Intermatic wiring instructions and applicable electrical codes.
Frequently Asked Questions
Can the T8805P101C skip watering days?
Yes. The 14-day skipper allows selected days to be omitted from the watering schedule.
Can I temporarily stop watering without reprogramming the timer?
Yes. The ON/OFF/AUTO control allows temporary shutdown or manual watering without changing the programmed cycle.
Why Buy the Intermatic T8805P101C from Big Frog Supply?
The T8805P101C is useful for irrigation systems that need durable mechanical scheduling, short watering intervals, and a 14-day skip cycle without relying on digital programming.
Input Voltage Range(s) 125 VAC, 60 Hz
MaximumOnOffOperations 44
Mechanism Type Analog/Mechanical
Switch Type SPST
Enclosure Type Indoor/outdoor type 3R plastic
Minimum ON/OFF Times 12 min
Maximum ON/OFF Times 20 hours, 45 minutes
Warranty Period 1-Year limited
Amps Per Pole 15 A
CAProp65Message
Please see the Warning @ www.P65Warnings.ca.gov
Clock Motor Voltage 125 VAC, 60 Hz
Country Of Origin Mexico
HP 1/2
Load Voltage 125 VAC, 60 Hz
Motor Load Ratings (Ranges) 1/2 HP, 120 VAC, 60 Hz
Number of Trippers Included 12
Tripper Actuating Time 12 min
Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40
