Brand: Irritrol SKU: 2400S
Product Overview

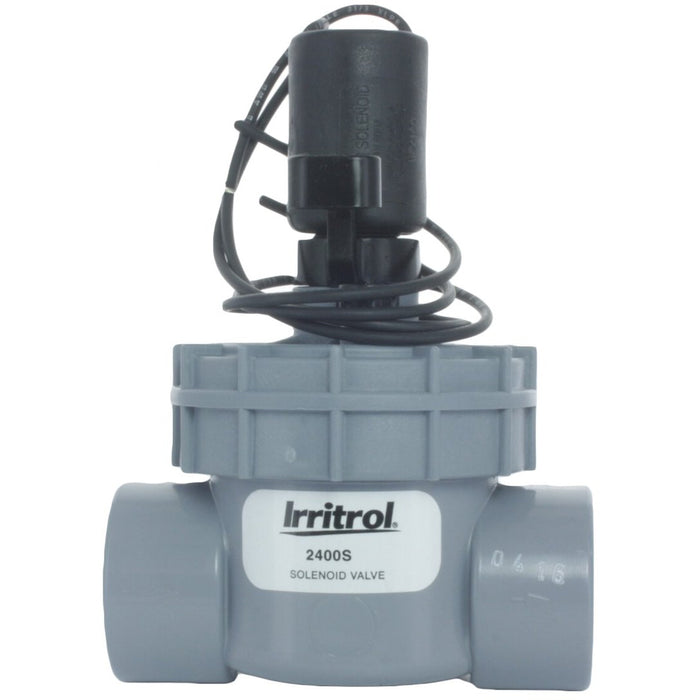

The Irritrol 2400S is a 1-inch globe irrigation valve with slip inlet and outlet connections. It is designed for residential sprinkler systems that use solvent-weld PVC piping and do not require an integrated flow-control stem. The threaded bonnet allows the upper valve assembly to be removed for service without cutting the valve body out of the line, making the 2400S a practical choice for new manifolds and compatible replacement work.
Irritrol builds the 2400 Series with corrosion- and UV-resistant PVC, glass-filled polypropylene, stainless-steel components, and a double-beaded Santoprene diaphragm. The full stainless-steel metering system supports consistent operation, while internal and external bleed options allow manual activation and flushing during installation or troubleshooting. The valve is rated for approximately 0.25 to 30 GPM and includes a standard 24 VAC solenoid for connection to a compatible irrigation controller.
The 2400S is specifically the slip-by-slip, no-flow-control model. Choose 2400SF when the same connection style is needed with a flow-control stem.
Key Features
- 1-inch slip inlet and outlet
- Globe-style valve body
- Threaded bonnet for easier service
- No flow control
- Approximate 0.25 to 30 GPM flow range
- Double-beaded Santoprene diaphragm
- Internal and external manual bleed
- Full stainless-steel metering system
- Standard 24 VAC solenoid
Common Uses
- Residential lawn and landscape irrigation
- Slip-connected PVC valve manifolds
- Replacing a compatible 2400S valve
- Zones that do not require local throttling
Compatibility and Installation Notes
Use with compatible 1-inch PVC pipe and follow the primer, cement, and cure-time instructions for the piping system. Install with the flow arrow aligned to water movement and protect the bonnet from excess cement. The valve requires a compatible 24 VAC irrigation controller for automatic operation.
Frequently Asked Questions
Does the 2400S include flow control?
No. The 2400S is the slip model without flow control.
Can the bonnet be serviced without removing the valve body?
Yes. The threaded bonnet is designed for in-line service when adequate valve-box access is available.
Are these threaded pipe connections?
No. Both connections are 1-inch slip sockets for compatible solvent-weld PVC.
Why Buy the Irritrol 2400S from Big Frog Supply?
The 2400S listing clearly identifies the slip-by-slip, no-flow-control configuration so you can match an existing manifold with confidence. Big Frog Supply also carries compatible diaphragms, solenoids, threaded-bonnet tools, and other Irritrol valve service parts.
