Brand: Irritrol SKU: 2400TB
Product Overview
The Irritrol 2400T-B, stored by Big Frog Supply as SKU 2400TB, is a 1-inch globe irrigation valve with a male-threaded inlet and barb outlet. This connection combination is intended for installations where the supply side uses a compatible female threaded fitting and the downstream lateral uses pipe designed for a barb connection. It is the no-flow-control version of this configuration.

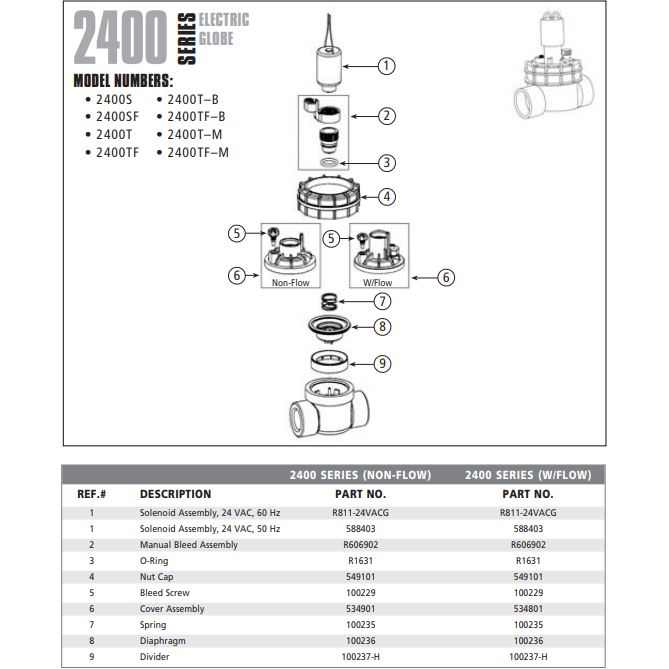

The 2400 Series uses a threaded bonnet for service access, a double-beaded Santoprene diaphragm, a full stainless-steel metering system, and heavy-duty PVC and glass-filled polypropylene construction. Internal and external manual bleed functions support system testing and flushing. Irritrol rates the family for approximately 0.25 to 30 GPM, and the included encapsulated 24 VAC solenoid connects to a compatible irrigation controller.
Because barb dimensions and compatible pipe materials can vary, confirm the intended lateral pipe, clamp or fastening method, and connection size before ordering. Choose 2400TF-B when this same male-by-barb configuration is needed with flow control.
Key Features
- 1-inch male threaded inlet
- 1-inch barb outlet
- Globe-style valve body
- No flow-control stem
- Threaded bonnet for service access
- Approximate 0.25 to 30 GPM flow range
- Double-beaded Santoprene diaphragm
- Internal and external manual bleed
- Standard 24 VAC solenoid
Common Uses
- Residential irrigation laterals using compatible barb pipe
- Male-threaded supply connections
- Replacing a matching 2400T-B valve
- Manifolds where a direct barb outlet simplifies installation
Compatibility and Installation Notes
Confirm that the outlet barb matches the pipe material and inside diameter. Use the correct clamp or fastening method specified by the pipe manufacturer. Seal the threaded inlet appropriately without overtightening the plastic body. Install with the flow arrow aligned to water movement and use a compatible 24 VAC controller.
Frequently Asked Questions
Why does the store SKU omit the hyphen?
Big Frog Supply stores the variant as 2400TB; Irritrol identifies the model configuration as 2400T-B.
Does this model include flow control?
No. The flow-control version is 2400TF-B.
Can any polyethylene pipe be pushed onto the barb?
No. Confirm pipe compatibility, size, pressure rating, and the required clamp before installation.
Why Buy the Irritrol 2400T-B from Big Frog Supply?
The connection layout is stated clearly on this page so you can distinguish it from Irritrol's slip, female-threaded, and male-by-male versions. Big Frog Supply also carries compatible diaphragms and 24 VAC solenoids for maintaining this specific valve family.
