Brand: Irritrol SKU: 2711APR
Product Overview

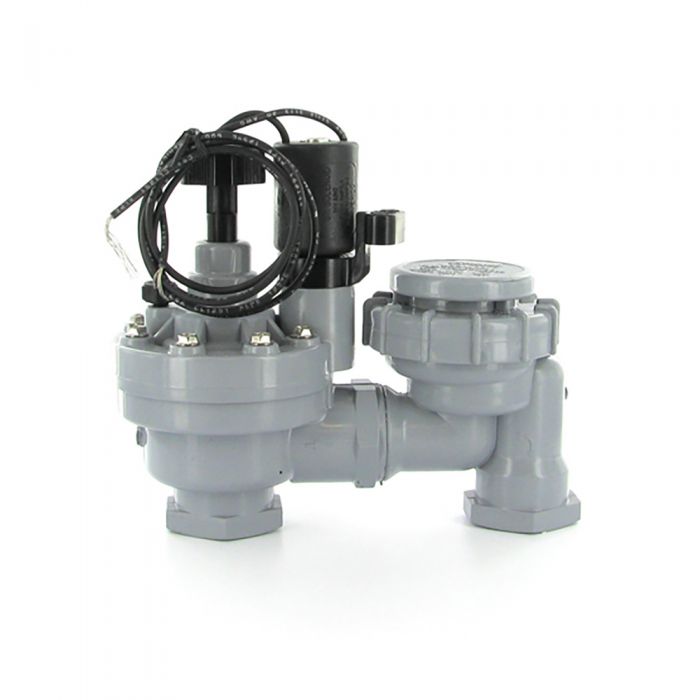

The Irritrol 2711APR is a 3/4-inch electric anti-siphon irrigation valve with integrated flow control and a stainless screw bonnet. It combines a 24 VAC automatic control valve with an atmospheric vacuum breaker for residential sprinkler zones that require above-ground anti-siphon protection. The APR design uses a self-aligning bonnet with captured screws and Irritrol's floating metering system to support consistent valve operation and easier service.
The valve is rated for approximately 0.25 to 30 GPM and 10 to 150 PSI. Internal and external manual bleed functions allow testing, flushing, or manual operation without changing the controller schedule. The flow-control handle can be used to balance the zone or manually shut the valve during maintenance. Heavy-duty, corrosion- and UV-resistant PVC and stainless-steel components are paired with a double-beaded Santoprene diaphragm and an encapsulated 24 VAC solenoid.
The 2711APR is the 3/4-inch electric APR model. Verify connection size and the required installation height above downstream outlets before ordering.
Key Features
- 3/4-inch electric anti-siphon valve
- Built-in atmospheric vacuum breaker
- Integrated flow control
- Stainless screw bonnet with captured hardware
- Approximate 0.25 to 30 GPM flow range
- Pressure range of 10 to 150 PSI
- Internal and external manual bleed
- Double-beaded Santoprene diaphragm
- Standard 24 VAC solenoid
Common Uses
- Residential sprinkler and landscape zones
- Automatic anti-siphon valve replacement
- 3/4-inch above-ground irrigation piping
- Zones requiring local flow adjustment
Compatibility and Installation Notes
Use with a compatible 24 VAC irrigation controller. Install above the highest downstream irrigation outlet according to current Irritrol instructions and local code. The atmospheric vacuum breaker must remain above grade and cannot be continuously pressurized downstream. Match the 3/4-inch threaded connections and install with the flow direction correctly oriented.
Frequently Asked Questions
Is the 2711APR electrically operated?
Yes. It includes a standard 24 VAC solenoid.
What size are the connections?
This model uses 3/4-inch connections.
Does it include flow control?
Yes. Flow can be adjusted or manually shut off at the valve.
Why Buy the Irritrol 2711APR from Big Frog Supply?
The page identifies the exact 3/4-inch APR configuration, including electric operation, flow control, and stainless screw bonnet. Big Frog Supply also carries compatible diaphragms, solenoids, sensors, and controllers for servicing the complete irrigation zone.
Product Type Electric anti-siphon irrigation valve
Manufacturer Part Number 2711APR
Connection Size 3/4 in.
Operation 24 VAC electric
Flow Control Included
Atmospheric Vacuum Breaker Included
Bonnet Stainless screw APR bonnet
Flow Range 0.25-30 GPM
Pressure Range 10-150 PSI
Inrush Current 0.4 A
Holding Current 0.2 A
